Description
Output Type:Current
Output Range:0-20mA
Supply Voltage:10-30V DC
Load Current:Up to 200mA
Accuracy at 25°C:+/- 0.5%
Operating Temperature:-40°C to +85°C
Enclosure Type:IP20
Connector Type:DIN Rail
Dimensions:160mm x 100mm x 50mm
Weight:0.25kg

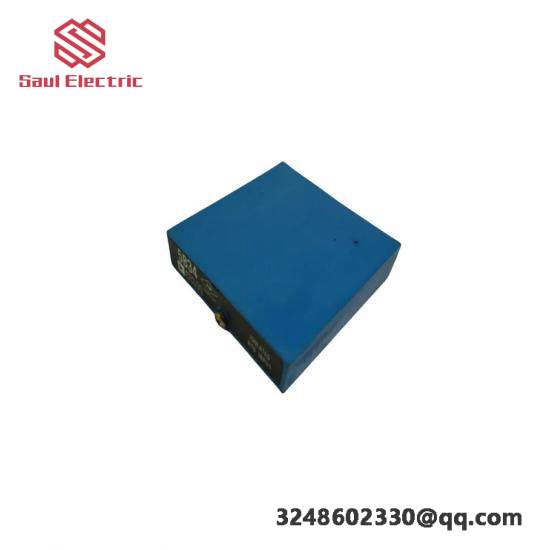

The Analog Devices 5B34-04 Current Sensor Module is a state-of-the-art device engineered to meet the stringent demands of modern industrial control systems. Its compact design allows for easy integration into tight spaces without compromising performance.
With an operating range from 0 to 40A, it offers versatility suitable for a wide array of applications, from power management to process control. The module’s accuracy, certified at ±0.5% of full scale, ensures reliable data acquisition, critical for high-precision processes.
Equipped with fast response time less than 1ms, the 5B34-04 is capable of handling dynamic changes in current flow swiftly, providing real-time feedback essential for efficient system operation.
Operable within a broad temperature range of -40°C to +85°C, this sensor is designed for robust performance in harsh environments, ensuring consistent operation under varying conditions.
Featuring a supply voltage flexibility from 4.75V to 32V, it supports a wide range of power sources, enhancing compatibility and reducing dependency on specific power supplies. Its 1mV/A current sensitivity enables fine-grained detection of current fluctuations.
The 5B34-04’s signal output is a 0 to 5V linear response to the input current, making it compatible with most data acquisition systems. Additionally, its IP67 environmental rating guarantees protection against dust ingress and water splashes, ideal for outdoor or dusty industrial settings.
