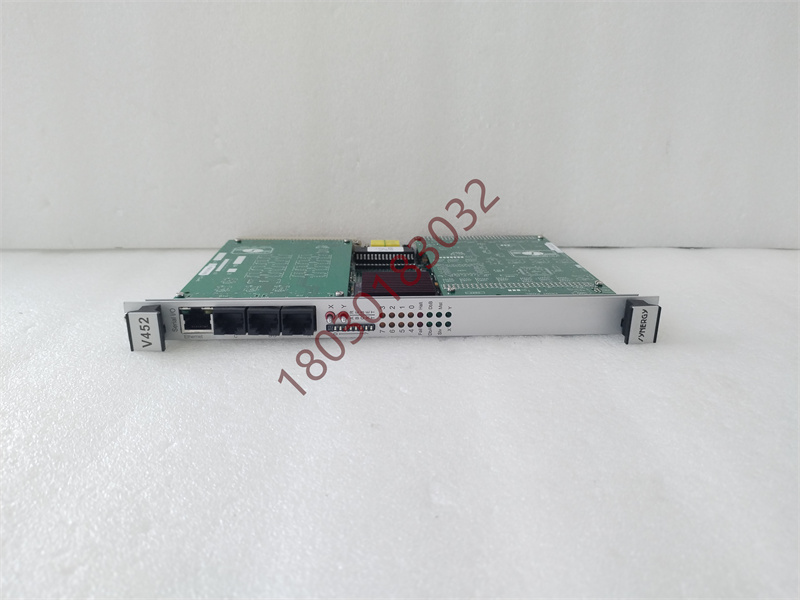

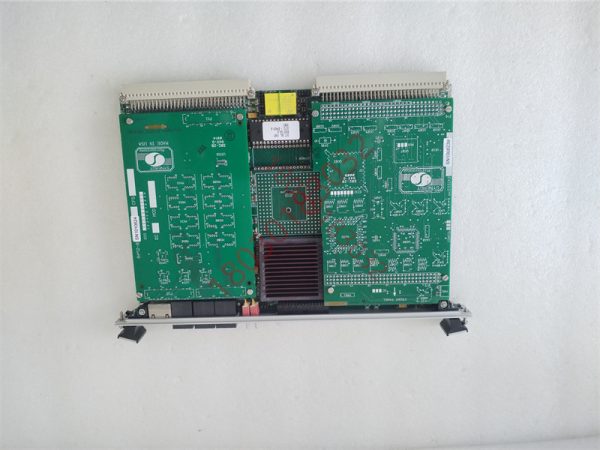

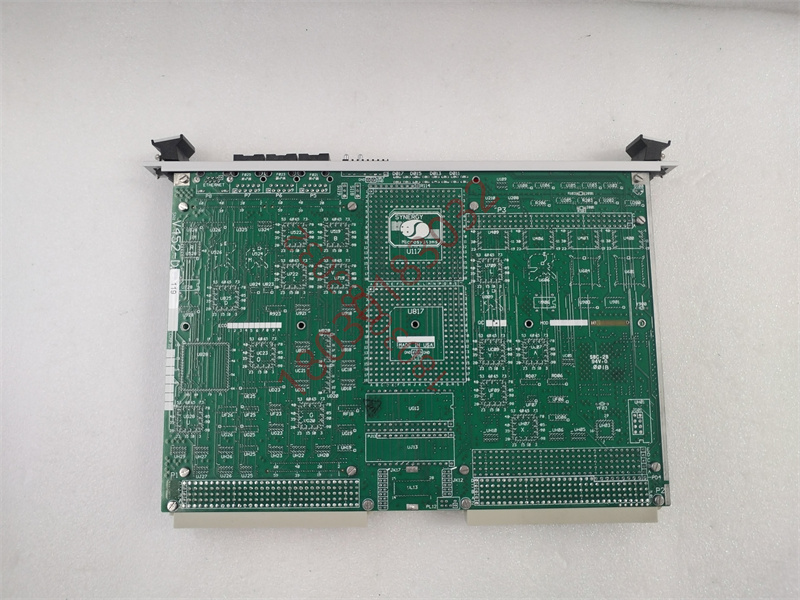

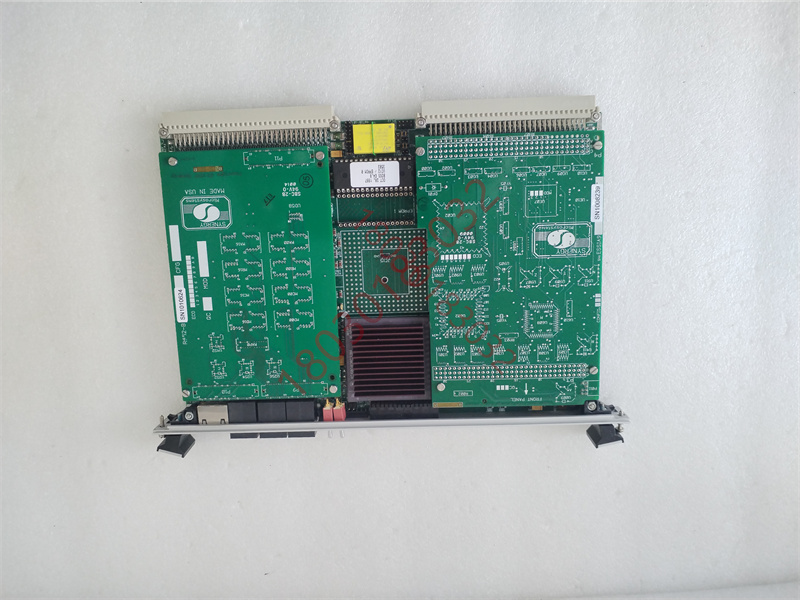

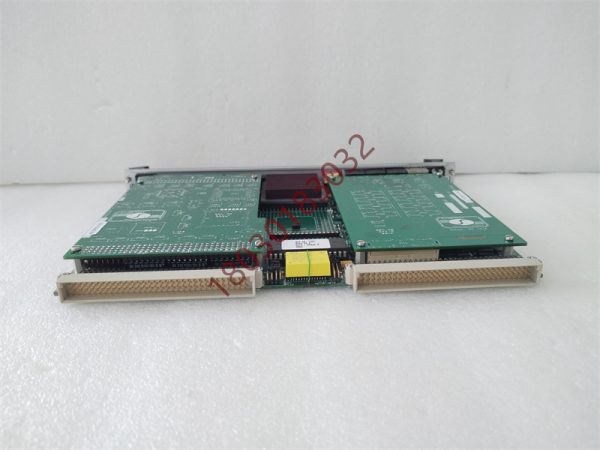

AMAT 0090-76133 Semiconductor Control Board/Module

Description

AMAT 0090-76133 semiconductor control board/module is a high-performance industrial control equipment designed specifically for the semiconductor manufacturing field, produced by Applied Materials (AMAT)

power range
Input voltage: single-phase 200-240VAC (± 10%) or three-phase 380-480VAC (± 10%)
Frequency: 48-63Hz
Power factor: 0.98
Power: 0.12-2.2kW

Technical Characteristics
hardware configuration
Processor: Based on the Motorola 68040 high-performance processor, it supports fast data processing and complex algorithm execution.
Memory and storage: 16MB of memory, paired with FLASH ROM storage, to ensure stable system operation and data security.
Communication interface: Integrated Ethernet RS-232、 Standard interfaces such as parallel ports support seamless connection with upper computers, sensors, and other devices.
Software Capability
Real time control: Provides powerful real-time control capabilities to accurately adjust key parameters such as temperature, pressure, gas flow rate, etc. in the semiconductor manufacturing process.
Data analysis: Built in data processing module, supporting sensor data collection, analysis, and visualization display to assist in process optimization.
System characteristics
Modular design: supports flexible expansion, and can add I/O modules, communication modules, etc. according to needs to adapt to different application scenarios.
High reliability: using industrial grade components, rigorously tested, with high MTBF (mean time between failures), meeting the requirement of continuous operation for 7 × 24 hours.
Customized services: Provide customized development support, which can adjust functions, interfaces, or exterior designs according to customer needs.

Market and Application
Market positioning: Targeting high-end industrial fields such as semiconductor manufacturing and industrial automation, meeting the high demand for control accuracy and stability in applications.
Typical applications:
Semiconductor manufacturing: the core control unit for process equipment such as wafer transfer, photolithography, etching, and deposition.
Industrial automation: As part of a PLC or DCS system, it enables automated control and monitoring of production lines.
