Description
Brand:Allen-Bradley
Series:Kinetix 6000
Power Module:Axis Module
Input Voltage:324-528V rms, 3-phase
Nominal Voltage:360 / 480V
Nominal Input Voltage:650 Volts DC
Voltage Class:400V
Continuous Output Power:3.9 kW
Peak Current:8.6 A
Continuous Output Current:6.1 A
Efficiency:98%
Internal Shunt Resistor:115 Ohms
Heat Dissipation:57-126 Watts
Capacitance:150 μF
Capacitive Rating:200,000 A (rms) symmetrical
Bandwidth Velocity Loop:500 Hertz
Current Loop Bandwidth:1300 Hertz
PWM Frequency:8 kHz

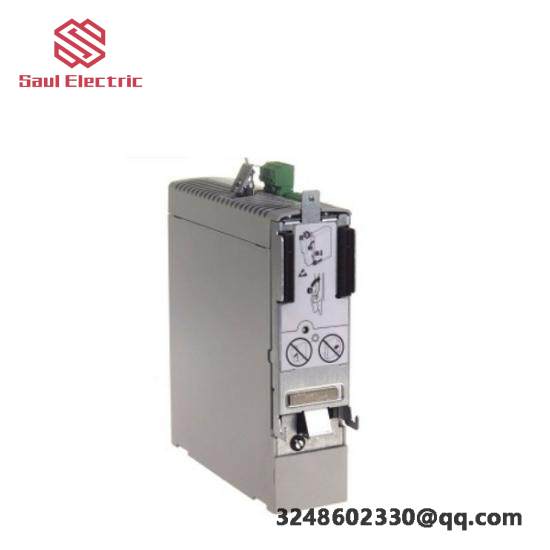

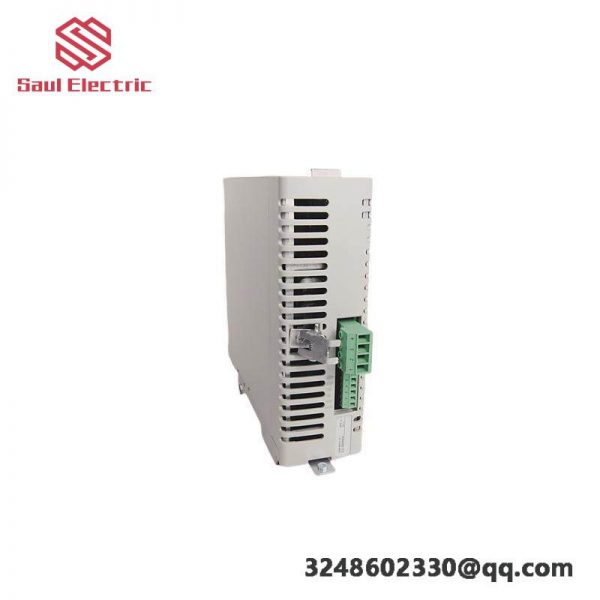

The Allen-Bradley 2094-BM01-S Axis Module is a key component in the Kinetix 6000 Multi-Axis Drive system. This module is engineered to deliver superior performance and efficiency, ensuring seamless integration within complex industrial control systems. With its integrated Safe-Torque Off (STO) functionality, this module enhances safety by providing protection against unexpected restarts, reducing the risk of accidents and downtime. The high efficiency and robust design make it suitable for demanding applications, where reliability and precision are paramount. The 2094-BM01-S supports up to 3.9 kW of continuous power output, with a peak current of 8.6 A, making it a versatile solution for various industrial automation needs. Additionally, its advanced safety features, such as Safe Maximum Speed and Zero Speed Monitoring, further safeguard both personnel and equipment, contributing to overall operational excellence.
