Description
Input Type:Digital
Number of Inputs:16 Points
Voltage Category:24V DC
Operating Voltage Range:20.4…26.4V DC
Current per Point:0.5 A @ 60 °C, 1.0 A @ 30 °C
Power Supply:24 Volts DC
Bus Current Draw:Max 200 mA
Mounting Options:DIN Rail or Panel Mount

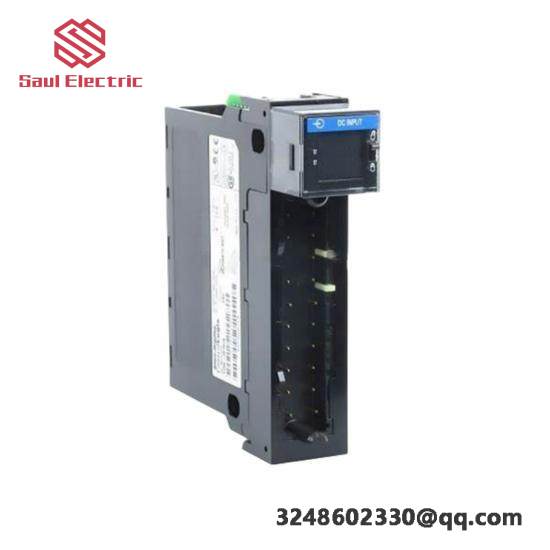

The Allen-Bradley 1756-IB16 is a robust and efficient discrete input module, perfectly suited for integration into ControlLogix systems within industrial automation environments. Its 16-point digital configuration ensures seamless data acquisition from various sensors and switches.
Featuring a wide operating voltage range and a high current capacity at both ambient temperatures, this module is designed to withstand demanding industrial conditions, providing reliable operation under varying environmental stresses.
The module supports a 24V DC power supply, ensuring compatibility with a broad range of industrial control systems. Its efficient bus current draw minimizes system power consumption, making it an eco-friendly choice for energy-conscious operations.
Ease of installation is another key feature, with support for both DIN rail and panel mounting options. This flexibility allows for quick deployment and adaptation to different installation requirements without compromising on performance.
Comprehensive diagnostics are provided through the module’s built-in communication status and health display capabilities, enabling real-time monitoring and proactive maintenance planning. This feature ensures optimal system uptime and reduces downtime costs associated with unexpected failures.
