Description
Module Type:High-speed Counter

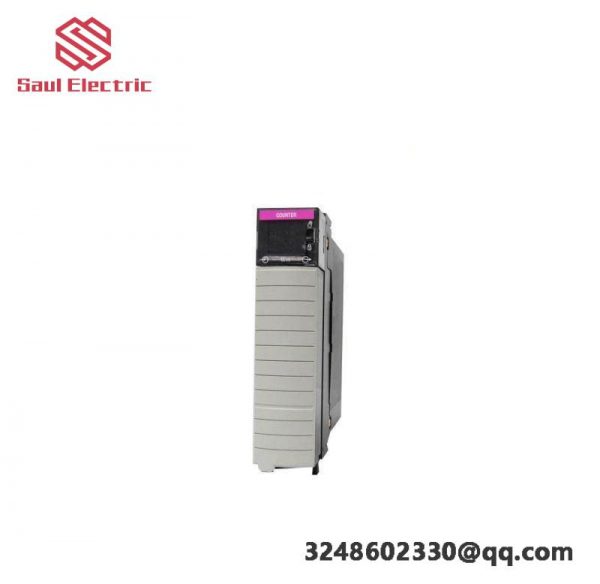

Model Number:1756-HSC
Manufacturer:Allen Bradley
Series:ControlLogix
Speed Measurement Range:Up to 100 kHz
Counter Channels:4 independent counters
Counting Modes:Normal, up/down, interval, binary count
Input Signals:Supports 16-bit digital inputs
Operating Voltage:24 VDC ± 10%
Communication Interface:EtherNet/IP
Enclosure Type:IP20
Mounting Type:Panel
Power Consumption:Less than 5 watts
Temperature Range:-25°C to +70°C
Environmental Compliance:UL, CE, CSA certified
The AB ControlLogix 1756-HSC module is engineered for demanding applications requiring precise timing and motion control, offering unmatched reliability and performance in industrial automation systems. Its high-speed processing capability allows for seamless integration into complex machinery, ensuring efficient operation across various industries.
Featuring four independent counting channels, this module provides versatile functionality, suitable for a wide range of applications from conveyor systems to robotics. The exceptional resolution of 1 μs ensures accuracy in tracking and measurement, making it ideal for high-speed processes.
With support for multiple communication interfaces including ControlNet, DeviceNet, and Ethernet/IP, the AB 1756-HSC module facilitates easy connectivity with other industrial devices, enhancing system flexibility and interoperability.
Engineered to withstand challenging industrial environments, the module operates within a temperature range of -20°C to +60°C, ensuring reliable performance regardless of the ambient conditions. Its humidity tolerance up to 95% non-condensing further enhances its durability in humid settings.
Built with robust materials and advanced circuitry, the AB ControlLogix 1756-HSC High-speed Counter Module is designed for long-term use without compromising on performance. It supports both standard and custom programming, enabling users to tailor the module’s functionality to meet specific project requirements.
