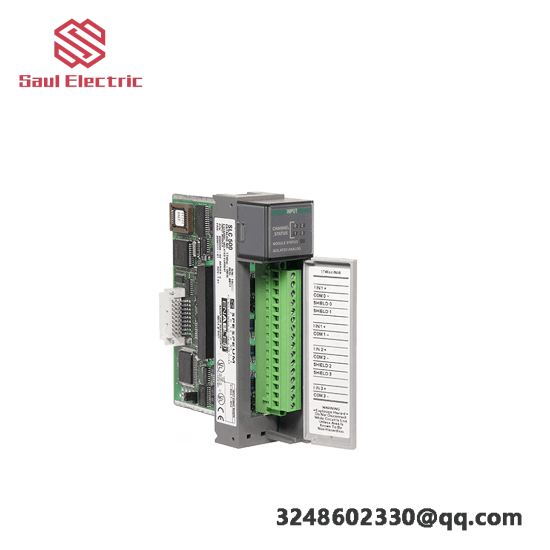

Allen Bradley 1746sc-INI4vi – High Resolution Analog Input Module for SLC 500, Precise Data Acquisition Solutions

Description

Model Type:Analog Input Module

Manufacturer:Allen Bradley

Model Number:1746sc-INI4vi

Channels:4

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC Or 7.5 VAC RMS (Max)

Input Range:-10 To 10 VDC – 1 LSB

Absolute Input Current:-30 To 30 MA (Max)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

    Capture precise analog signals from sensors with this high-resolution Allen Bradley module, perfect for integration in industrial control systems.

    With a versatile input range, this module supports a variety of sensor outputs, enhancing system flexibility and adaptability.

    Featuring advanced overvoltage protection, ensuring reliable operation even under fluctuating power conditions.

    Easy installation and maintenance are ensured with its open-type enclosure design, making it suitable for various industrial environments.

    Optimized for seamless communication, this module seamlessly integrates with Allen Bradley’s comprehensive control network, offering enhanced monitoring and control capabilities.
