Allen-Bradley 1746-OV16 SLC 500 Discrete Output Module

The AB 1746-OV16 is a high-performance discrete output module designed for industrial automation systems. It provides reliable digital control solutions for various applications, ensuring seamless integration with Allen-Bradley SLC 500 family controllers.

SKU: 14117570 Category: Tags: , , ,

Description

Module Type:Discrete Output Module

Input Voltage:24VDC

Voltage Range:10-50 Volts DC

Channels:16

Backplane Current Consumption:0.270 A

Sink Outputs:16

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Environmental Conditions:{“Temperature Rating”:”0 – 60°C”,”Humidity”:”5 – 95%”}

    The AB 1746-OV16 is a robust and reliable discrete output module specifically engineered for industrial automation environments. With its advanced design, it offers seamless integration with Allen-Bradley SLC 500 family controllers, making it an ideal choice for a wide range of applications. This module supports a nominal input voltage of 24 VDC, with a voltage range from 10 to 50 VDC, ensuring compatibility with diverse industrial systems. Its 16 discrete outputs provide precise digital control, with each channel capable of handling a continuous current of up to 0.25 A at 60°C. The module’s backplane current consumption is minimal at 0.270 A, ensuring efficient energy usage. Additionally, the AB 1746-OV16 boasts excellent isolation features, including 500 VDC communication circuit isolation and 1500 VAC backplane isolation, enhancing its reliability and safety in demanding industrial settings. Designed for durability, this module operates within a temperature range of 0-60°C and can withstand environmental conditions ranging from 5% to 95% humidity. Whether you’re automating machinery or controlling complex processes, the AB 1746-OV16 delivers the performance and reliability you need to drive your operations forward.

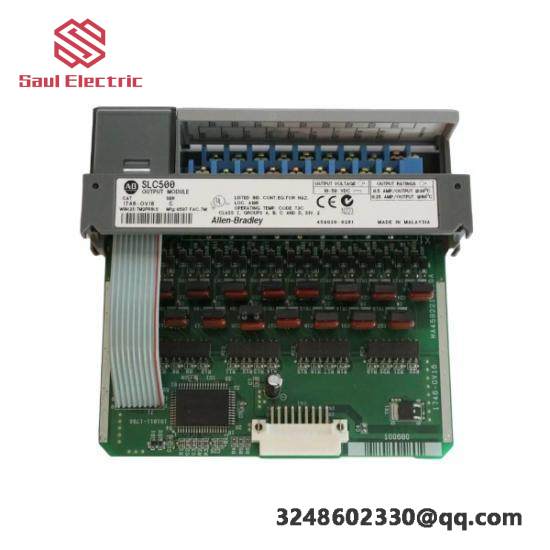

A-B 1746-OV16

A-B 1746-OV16
