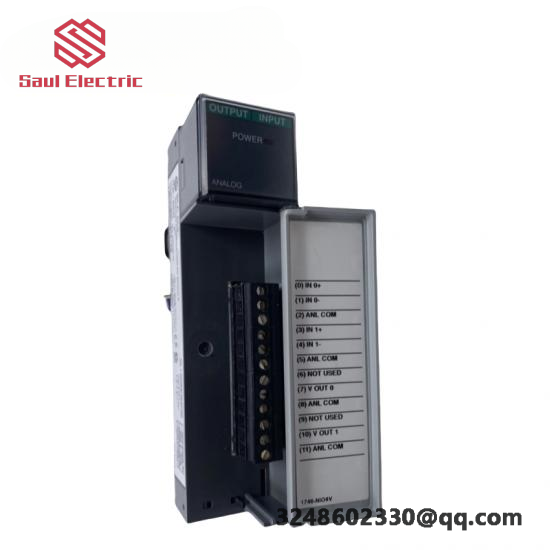

This Allen Bradley 1746-NIO4V SLC 500 Analog Input & Voltage Output Module is designed for industrial automation environments, offering seamless integration with control systems for precise signal processing and control applications.

SKU: 14095924 Category: Others Tags: 1746-NIO4V, 1746-NIO4V manual, 1746-NIO4V manual pdf, 1746-NIO4V pdf, 1746NI04V, A-B 1746-NIO4V

Description
Reviews (0)

Description

Model Type:High Resolution Analog Combination Module

Number Of Channels:2 Inputs, 2 Outputs

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA

Output Range:-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Backplane Current Draw:55 MA

Isolation:Backplane: 500 VDC

Enclosure Type:Open Type

The Allen Bradley 1746-NIO4V module offers high-resolution analog input and output capabilities, ideal for applications requiring precise voltage control in industrial automation.

With its robust design, this module ensures reliable operation under demanding conditions, delivering accurate data for enhanced process monitoring and control.

Featuring a backplane current draw of 55 mA, the 1746-NIO4V supports efficient power management and minimizes system-wide energy consumption.

Its open-type enclosure facilitates easy installation and maintenance, ensuring minimal downtime and maximizing operational efficiency.

Equipped with a status LED display, the module provides immediate feedback on operational status, enabling quick troubleshooting and proactive maintenance scheduling.
