Description
Number of Channels:8 Analog Input Channels
Signal Type:Common Mode Voltage Range -20V to 20V
Absolute Input Voltage:+/-7.5VDC or 7.5VAC RMS (Max.)
Input Range:-20mA to 20mA
Absolute Input Current:-30mA to 30mA (Max.)
Voltage Rating:Overvoltage Protection – 7.5VAC RMS
Resolution:16-Bits
Impedance:>1MOHM
Environmental Conditions:Operating Temp: 0°C to 60°C, Relative Humidity: 5% to 95% non-condensing
Isolation:Communication Circuits – 500VDC, Backplane – 1500VAC

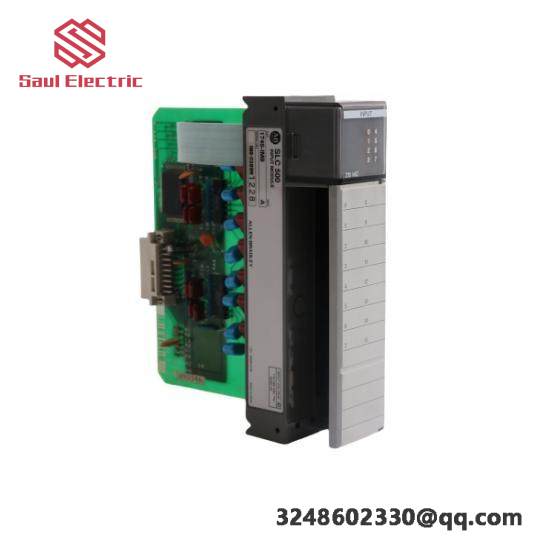

The Allen Bradley 1746-IM8 Input Module is a robust solution for industrial automation environments, offering precise and reliable data acquisition from various sensors. It is compatible with the Allen-Bradley SLC 500 system, ensuring seamless integration and enhanced efficiency.
With its high-resolution analog input capability, this module accurately captures and processes sensor data, providing critical information for process control and monitoring applications. Its wide common mode voltage range and absolute input voltage specifications ensure compatibility with a broad spectrum of sensor outputs.
Featuring 16-bit resolution and a high impedance input design, the 1746-IM8 ensures minimal signal distortion and accurate readings even under varying environmental conditions. The module’s ability to withstand overvoltage protection safeguards against electrical hazards, enhancing system reliability.
Designed for flexible installation, the 1746-IM8 Input Module supports open type enclosures and can be mounted directly onto a chassis. Its compact size and modular design allow for easy integration into existing control systems, minimizing installation time and costs.
This Allen Bradley module is part of their comprehensive range of industrial automation products, known for their durability and performance. It exemplifies Allen-Bradley’s commitment to delivering cutting-edge solutions that drive operational excellence in manufacturing and industrial settings.
