Description

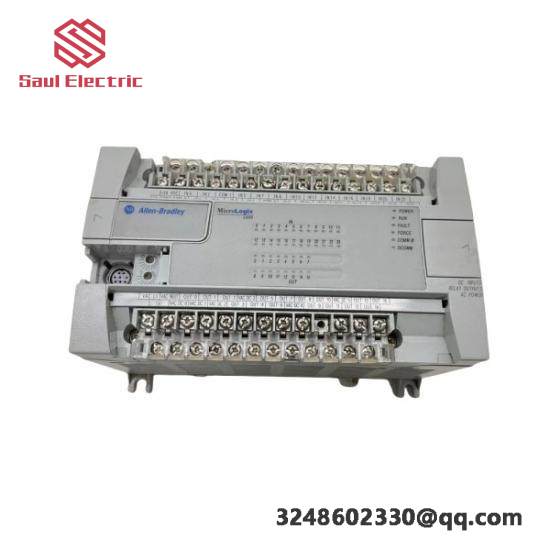

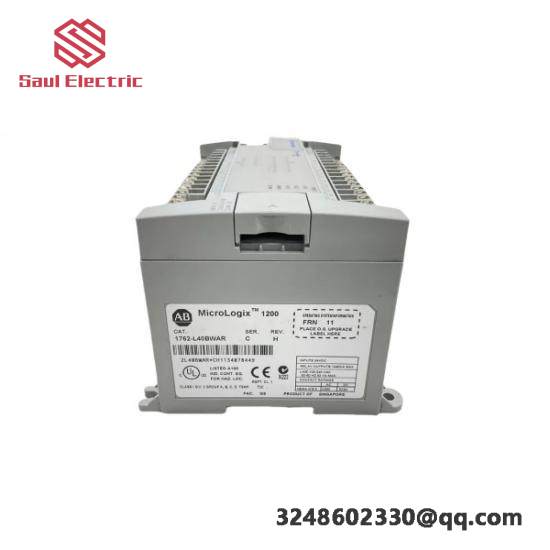

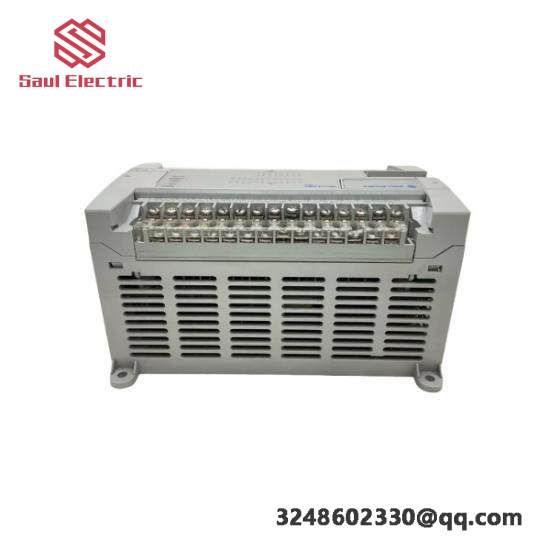

Model Type:MicroLogix 1200 Programmable Logic Controller
Product ID:1762-L40BWAR
Allen-Bradley Type Designation:PLC
Number of Inputs:20 Standard 24VDC, 4 Fast 24VDC
Number of Groups:1
Voltage Category:24VDC
Output Voltage Range:20.4-26.4VDC
Outputs:(20) Sourcing, (4) Fast Sourcing, (16) Relay
Mounting:DIN Rail, Panel
Input Power:24 Volts DC
Operating Voltage Range:20 to 26.4 Volts DC
Communication Ports:Embedded 8-pin mini-DIN (DF1, DH-485, ASCII, MODBUS)
Programming Port:Left Side
Length:180 MM
Width:90 MM
Height:87 MM
Temperature Rating:-20 To 60 DEG C
Environmental Conditions:Relative Humidity: 5 – 95% Noncondensing, Vibration: 3 G At 10 – 500 HZ, Shock Operating: 30 G, Shock Non-operating: Panel Mount 50 GDIN Mount 40 G
The MicroLogix 1200 controller is designed for ease of integration into existing systems, featuring versatile communication options to facilitate seamless data exchange with other devices.
With its high-speed processing and ample memory, this controller is capable of handling complex control tasks without sacrificing performance.
Equipped with a user-friendly programming interface, the MicroLogix 1200 simplifies the development and deployment of control logic, enabling rapid prototyping and customization.
Offering a wide operating temperature range, this controller is suitable for use in harsh industrial environments, ensuring reliable operation under varied conditions.
The compact form factor and lightweight design make it an ideal choice for space-constrained applications, without compromising on functionality or performance.
