Description
Operating Voltage:240 V AC
Current Rating:20 A
Insulation Class:180°C
Protection Type:IP20
Control Circuit Voltage:24 V DC
Relay Contacts:1NO + 1NC
Environmental Conditions:Operating Temp: -20°C to 60°C, Storage Temp: -40°C to 85°C
Dimensions:140mm x 110mm x 40mm
Weight:0.6kg

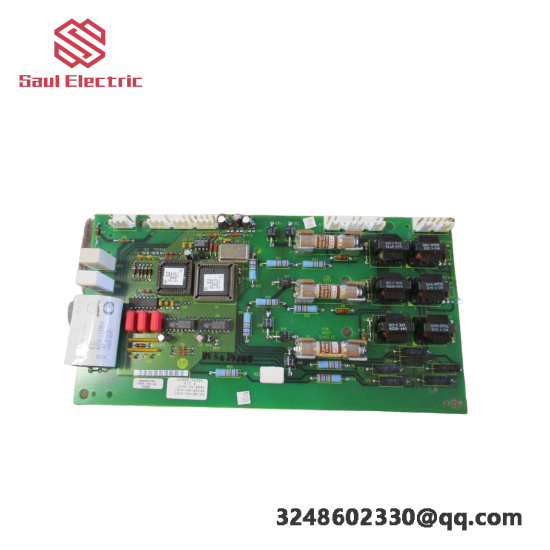

This Allen-Bradley precharge board is engineered to provide superior performance in industrial automation applications. Its advanced circuitry ensures a controlled increase in voltage to the motor during start-up, significantly reducing the mechanical and electrical strain typically associated with sudden full-voltage application.
Featuring robust insulation properties, this board can withstand high temperatures and harsh environmental conditions, making it ideal for use in various industrial settings. It includes a set of reliable relay contacts for switching control signals.
The compact design of the Allen-Bradley 1336-PB-SP23A allows for easy integration into existing control panels, enhancing system reliability without requiring extensive space. With its durable construction and efficient functionality, this precharge board is an essential component for maintaining optimal operational conditions in industrial machinery.
Installation is straightforward, with clear guidelines provided for compatibility with different motor types and control systems. Maintenance is minimal due to its rugged build and high-quality materials, ensuring long-lasting performance in demanding environments.
By incorporating the Allen-Bradley 1336-PB-SP23A Precharge Board into your industrial control systems, you can expect enhanced system stability, reduced maintenance costs, and increased overall efficiency. This board is an investment in reliability that pays off in terms of operational savings and extended equipment lifespan.
