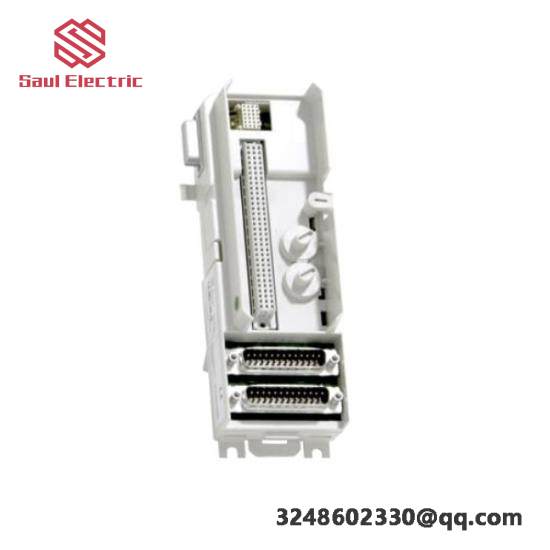

ABB TU819 Compact Module for Advanced Control Solutions

Description

Operating Voltage:24V DC

Input Current:Max. 2A

Output Current:Max. 2A

Terminal Capacity:Suitable for 1mm² to 10mm² cables

Temperature Range:-20°C to +60°C

Mechanical Life:Over 10,000 cycles

Environmental Protection:IP20 (Front), IP20 (Back)

Dimension:80mm x 54mm x 14mm (L x W x H)

    The ABB TU819 Compact Module Termination is engineered for optimal performance in demanding industrial environments. Its compact size and robust design facilitate easy installation and integration within existing control systems.

    Featuring a wide operating voltage range, this module is versatile enough to support various power supplies, ensuring reliable operation across diverse applications.

    Equipped with a 100Ω termination resistance, it optimizes signal integrity and minimizes signal reflections, leading to improved data accuracy and reduced errors in data transmission.

    The TU819 utilizes a 2×5-pin screw terminal block for secure and straightforward connection of external devices. This feature simplifies maintenance and enhances the overall reliability of the system.

    Designed for operation within a temperature range of -25°C to +70°C, the module ensures continuous functionality even in extreme conditions, making it ideal for harsh industrial settings.

    With an IP20 protection class, the TU819 is protected against solid foreign objects and is suitable for use in environments with dust or minor splash water, ensuring durability and longevity in industrial operations.
