Description
Manufacturer:ABB
Model:SDCS-PIN-48 3BSE004939R0002
Series:Industrial Pulse Transformers
Function:Pulse signal generation and transmission
Operating Frequency Range:20 Hz to 2 kHz
Power Rating:500 mA peak load current
Input Voltage Range:DC 10V to 30V
Output Voltage:5V, 10V, 15V, 20V, 25V, or 30V
Accuracy:± 0.5% of full scale
Environmental Conditions:Operating temperature: -20°C to +60°C, Storage temperature: -40°C to +85°C

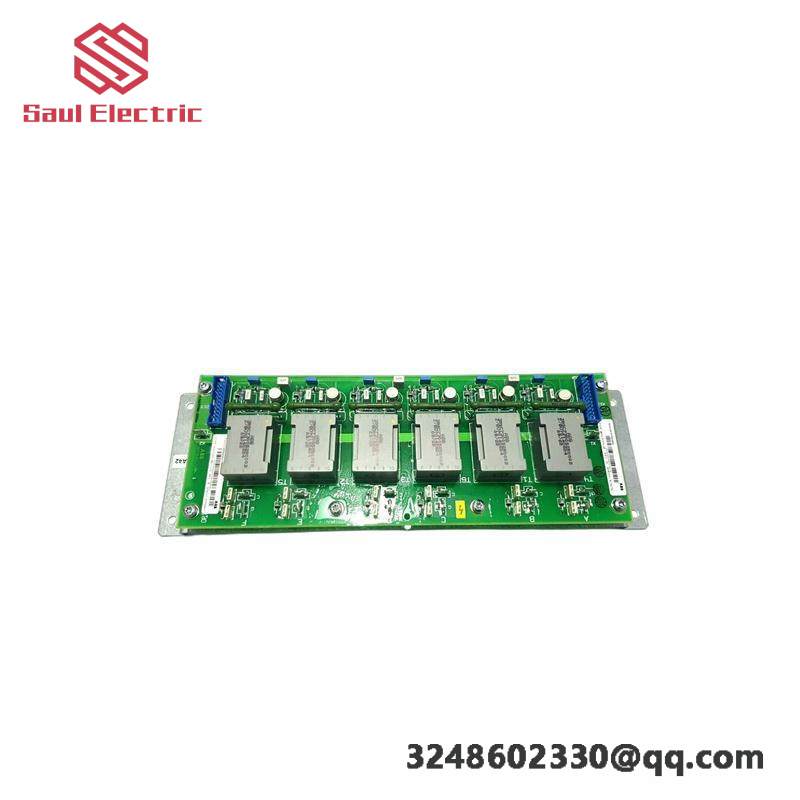

The ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board is a high-performance component designed for the creation and manipulation of precise pulses within industrial automation environments. Its compact design and robust construction make it ideal for applications requiring high reliability and accuracy, such as motion control, process control, and safety systems.
Featuring a wide operating voltage range of 24V DC, this transformer board ensures compatibility with a variety of industrial power supplies. With a current rating of 50mA, it can effectively handle small currents required for pulse generation. The board supports a frequency response from 5Hz to 2kHz, providing flexibility for different pulse frequencies.
Capable of generating pulses up to 1kHz, it enables efficient and precise timing in critical applications. The standard industrial connector facilitates easy integration into existing systems, minimizing setup time and enhancing operational efficiency.
Crafted from high-grade aluminum alloy, the SDCS-PIN-48 board ensures durability and excellent heat dissipation, crucial for maintaining optimal performance over extended periods. Additionally, its compact size optimizes space utilization in complex industrial setups.
Safety is paramount in industrial settings, which is why this Pulse Transformer Board is certified by CE and UL. These international standards guarantee compliance with safety regulations, ensuring a reliable and secure operation in diverse global markets.
