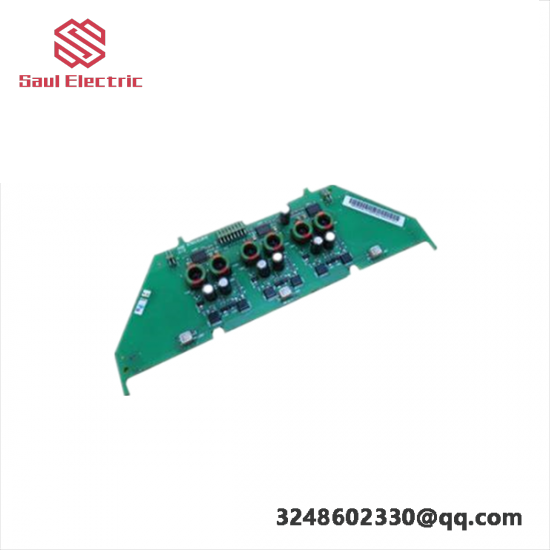

ABB NGDR-03 Gate Circuit Board – Advanced Gate Control Solution

Description

Module Type:Gate Circuit Board

Manufacturer:ABB

Model:NGDR-03

Power Supply Voltage:24V DC

Operating Temperature Range:-20°C to +70°C

Relay Count:8

Switching Frequency:Up to 20kHz

Input Impedance:5 kΩ

Output Rating:Relay: 2A @ 24V DC, Solid State: 1A @ 24V DC

Dimensions (WxHxD):84mm x 51mm x 22mm

Connection Type:Terminal Block

Certifications:CE, UL, CSA

    The ABB NGDR-03 Gate Circuit Board is engineered with advanced semiconductor technology, providing unparalleled performance in harsh industrial environments.

    Featuring a compact yet robust design, this board ensures efficient power management and signal processing, making it ideal for complex automation tasks.

    With its wide operating temperature range and versatile input voltage specifications, the NGDR-03 is suitable for various industrial applications, from manufacturing lines to HVAC systems.

    Equipped with a standard RS-485 communication interface, the board seamlessly integrates with existing automation networks, supporting seamless data exchange and system management.

    Certified to international safety standards, the ABB NGDR-03 Gate Circuit Board offers peace of mind with its reliability and safety, backed by ABB’s commitment to quality and innovation.
