Description
Type:Terminal Board
Model:DSTD110A
Part Number:57160001-TZ
Brand:ABB
Material:High-grade aluminum alloy
Operating Temperature Range:-20°C to +60°C
Dimensions (WxHxD):100mm x 100mm x 20mm
Weight:0.5kg
Current Rating:10A
Voltage Rating:DC 24V
Communication Protocol:MODBUS RTU
Connection Type:M8 x 0.8 mm pitch
Number of Inputs/Outputs:16/16
Relay Outputs:8
Power Supply:Internal power supply
Environmental Protection:IP20

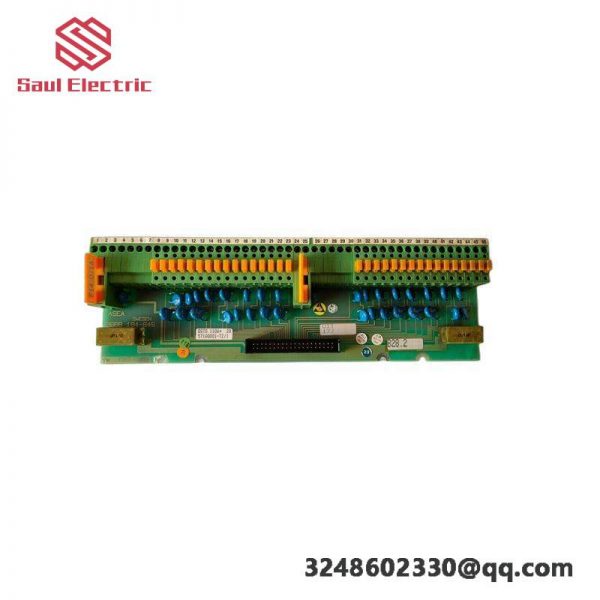

The ABB DSTD110A 57160001-TZ Terminal Board is engineered to deliver exceptional performance in harsh industrial environments. Its robust design ensures reliable operation under extreme temperature fluctuations, making it suitable for applications in manufacturing, process control, and other sectors where precision and durability are paramount.
Featuring an advanced RS-485 communication interface, this terminal board facilitates efficient data transfer between different components of an automation system. It supports a wide voltage range, ensuring compatibility with various power sources and enabling it to operate effectively across diverse settings.
With a total of 16 input and output channels, the DSTD110A offers flexibility in configuring control systems to meet specific needs. Each channel is designed to handle different types of signals, allowing for versatile use in monitoring and controlling processes.
The board is equipped with a 10W maximum power consumption rating, ensuring low energy usage even during intensive operations. This feature contributes to reduced operational costs and improved environmental sustainability.
Designed with an IP20 protection rating, the ABB DSTD110A 57160001-TZ Terminal Board provides effective dust and splash resistance, safeguarding against common industrial contaminants. This enhances its longevity and reliability in outdoor or dusty indoor settings.
For optimal integration into existing systems, the board is compatible with a wide range of control units and software protocols. This ease of integration minimizes installation time and streamlines maintenance procedures, contributing to overall system efficiency.
