Description
Board Type:DSQC562
Model Designation:Serial Measurement Board
Module Category:Industrial Control
Processing Speed:10 MHz
Analog Inputs:4 channels
Digital Inputs:16 channels
Analog Outputs:2 channels
Serial Interface:RS-485
Power Supply Voltage:DC 24V
Operating Temperature Range:-20°C to +60°C
Dimensions (WxHxD):101.6 x 101.6 x 32.7 mm
Net Weight:172 g

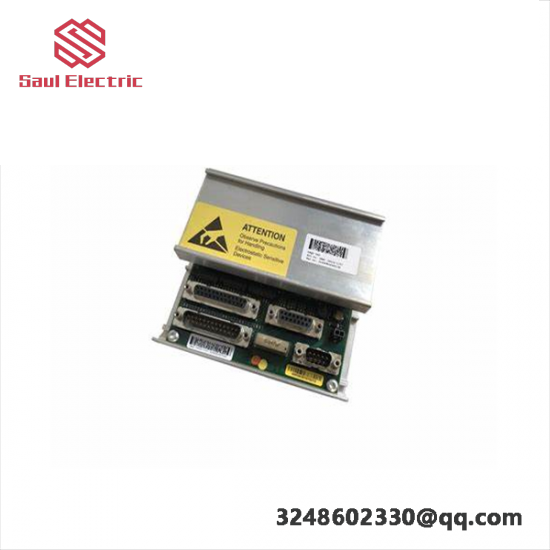

The ABB DSQC562 Serial Measurement Board is a highly versatile component that significantly enhances the capabilities of industrial automation systems by providing precise data acquisition and control functionalities.
Featuring an RS-232 interface for seamless communication, this board is engineered to meet the stringent requirements of various industrial environments, ensuring reliable performance under diverse conditions.
With 16 data channels, including both analog inputs and digital inputs/outputs, the DSQC562 enables the collection and manipulation of critical process data, facilitating accurate monitoring and control of operations.
Capable of handling voltage ranges from -10 V to +10 V on its analog inputs and equipped with 16 inputs and outputs, this board offers flexibility in integrating with different types of sensors and actuators.
Engineered for robustness, the DSQC562 is designed to withstand wide temperature variations (-20°C to +60°C operational, -40°C to +85°C storage), making it suitable for deployment in harsh industrial settings.
In summary, the ABB DSQC562 Serial Measurement Board is an indispensable tool for engineers seeking to optimize their automation systems, offering unparalleled precision and reliability in data acquisition and control.
