Description
Brand:ABB
Model:DSQC 104
Type:Resolver Board
Interface:EtherCAT
Input Voltage:DC 5V ±10%
Operating Temperature:-20°C to +70°C
Resolution:12 bits
Accuracy:±0.5°
Load Capacity:1 A per channel
Connection:2 x 20-pin connector
Communication Protocol:EtherCAT

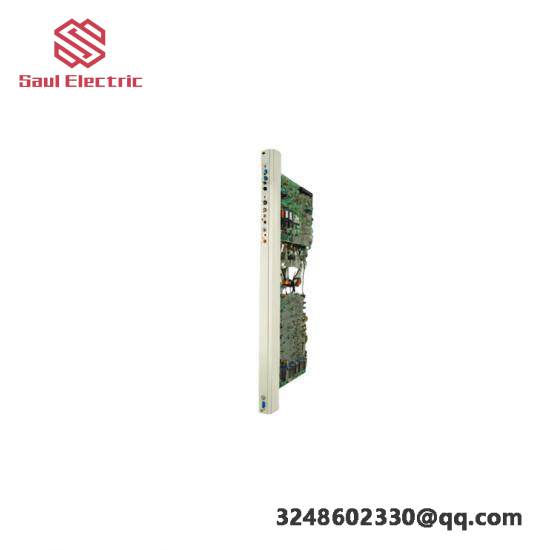

The ABB DSQC 104 Resolver Board is a high-performance component designed to enhance the capabilities of automation systems in various industrial applications. This resolver board features a robust digital input and analog output design, ensuring accurate data transmission under extreme conditions.
Equipped with a high-resolution 24-bit analog-to-digital converter, it provides precise measurements for position and speed feedback, critical for machinery and robotic systems requiring high precision.
Built for durability, the DSQC 104 operates within a wide temperature range (-20°C to +70°C), making it suitable for diverse industrial environments. Its power-efficient design ensures minimal energy consumption, contributing to operational cost savings.
With dimensions measuring 88 x 44 mm and a lightweight of approximately 50 grams, the board offers easy integration into existing control panels without compromising on space or performance.
This module adheres to international safety and quality standards, ensuring reliable operation and minimizing downtime. It is compatible with a wide range of ABB PLCs and other industry-standard control systems, facilitating seamless integration into existing automation networks.
