Description
Model Type:DSQC1000 Modules
Robot Compatibility:IRB6700 Robots
Operating Voltage:DC 24V
Current Rating:2A
Communication Interface:EtherCAT
Input Channels:16 digital inputs
Output Channels:16 digital outputs
Weight:Approx. 2.5kg per module
Dimensions (LxWxH):160mm x 100mm x 50mm
Operating Temperature:-20°C to +50°C

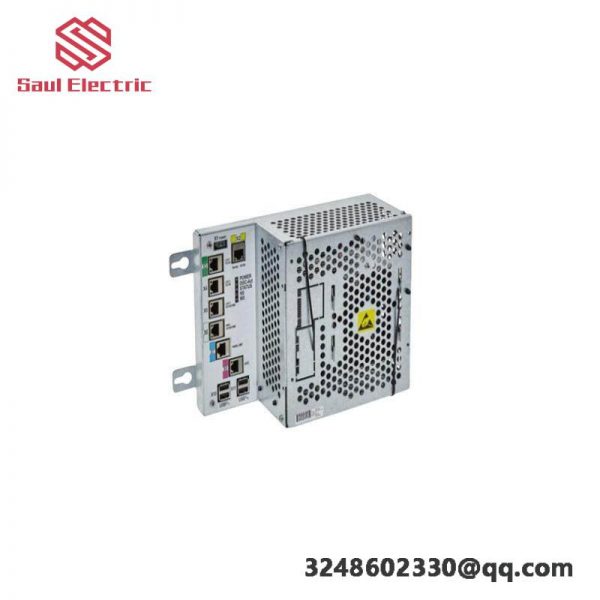

The ABB DSQC1000 modules are engineered to provide unparalleled precision and reliability in manufacturing environments, seamlessly integrating into complex robotic systems like the IRB6700. These modules significantly boost operational efficiency by facilitating real-time data acquisition and control over digital and analog signals.
With 16 digital inputs and 16 digital outputs, along with 8 analog inputs, the DSQC1000 enables comprehensive monitoring and control capabilities. This setup allows for precise coordination between the robot and other manufacturing equipment, ensuring smooth workflow and high productivity.
Built with advanced communication protocols, including EtherCAT, these modules ensure robust data transfer at high speeds, critical for the seamless operation of modern robotic systems. Their compatibility with 12-24V DC power sources makes them versatile for a wide range of industrial applications.
The compact design and IP20 environmental rating make the DSQC1000 suitable for a variety of industrial settings. Its ability to operate within a temperature range from -20°C to +55°C ensures reliability in diverse environments, from cold storage facilities to hot production lines.
For detailed installation and configuration, our comprehensive user manual provides step-by-step guidance on how to integrate the DSQC1000 modules into your existing IRB6700 robotic system, optimizing performance and enhancing overall manufacturing capabilities.
