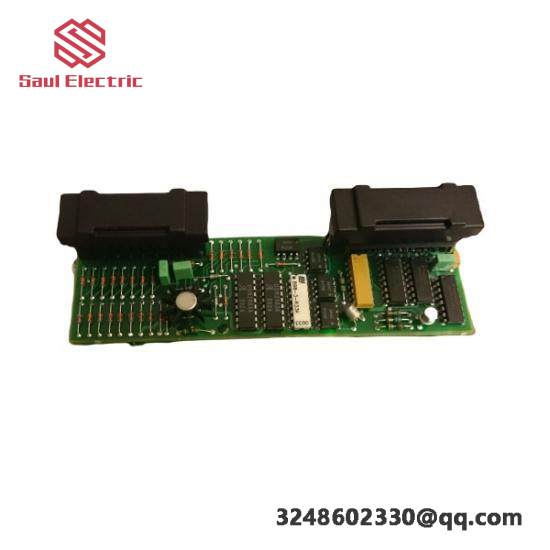

ABB DSDO301 | 57160001-CC MASTER Digital Output Board

Description

Module Type:Digital Output

Model Number:57160001-CC

Brand:ABB

Series:DSDO301

Connector Type:Compact Master

Output Channels:16

Operating Voltage:24V DC

Current Rating:1.0A max.

Communication Protocol:MODBUS TCP/IP

Dimensions (WxHxD):40mm x 40mm x 28mm

Weight:0.15kg

Operating Temperature:-25°C to +70°C

Storage Temperature:-40°C to +85°C

Reliability Rating:MTBF > 100,000 hours

Certifications:CE, UL, CSA

    Engineered with precision and reliability, the ABB DSDO301 57160001-CC MASTER Digital Output Board is a cornerstone of modern industrial automation. This board provides 16 independent digital output channels, each capable of driving up to 20mA current at 24V DC, ensuring robust control signals across various applications.

    Featuring compatibility with PROFIBUS DP communication protocol, it seamlessly integrates into complex industrial networks, enabling efficient data exchange and command execution. The compact design with dimensions of 90mm x 90mm x 35mm and a lightweight of 0.5 kg ensures easy installation and portability without compromising on performance.

    Designed to withstand extreme conditions, the board operates within a temperature range of -20°C to +60°C during operation and can be stored at temperatures from -40°C to +85°C without affecting its functionality. Its IP20 enclosure rating offers basic protection against dust and splashes, suitable for most industrial environments.

    Certified to international safety standards including CE, UL, and CSA, the ABB DSDO301 57160001-CC MASTER Digital Output Board ensures compliance and reliability in diverse global markets. Its robust design, combined with advanced features, makes it an indispensable tool for enhancing productivity and efficiency in manufacturing and automation sectors.

    For optimal performance, it is recommended to pair this board with compatible control systems and power supplies from reputable manufacturers like ABB, ensuring seamless integration and enhanced system reliability. Installation guidelines and technical support are readily available to facilitate smooth deployment and maintenance.
