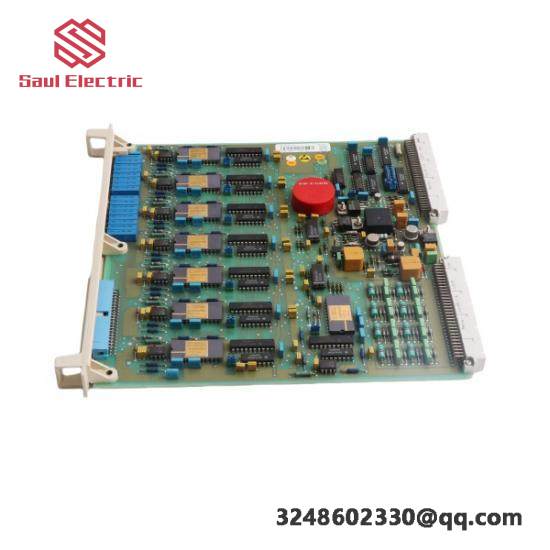

ABB DSAO 120: 8-Channel Analog Output Module, Precision Control Solutions

Description

Module Type:Analog Output Module

Channels:8

Signal Type:4-20 mA / 0-10 V

Output Current Range:0 to 20 mA

Output Voltage Range:0 to 10 V

Accuracy:±0.02% + full scale

Operating Temperature:-25°C to +60°C

Power Supply Voltage:DC 24 V

Communication Interface:MODBUS RTU

Relay Contact Rating:5 A @ 250 VAC / 3 A @ 30 VDC

Connection Type:Terminal Block

Enclosure Type:IP20

Dimensions (WxHxD):102 x 19 x 45 mm

Weight:0.3 kg

    The ABB DSAO 120 is a high-performance analog output module that delivers exceptional precision and reliability for demanding industrial control scenarios. Each of its 8 independent channels is capable of delivering currents from 4 mA to 20 mA, ensuring accurate and stable signal transmission.

    Engineered with a compact design and robust materials, this module can withstand harsh industrial environments, making it ideal for applications requiring long-term stability and durability. Its wide operating temperature range (-20°C to +60°C) allows it to function effectively in a variety of industrial settings.

    Featuring a built-in RS-485 communication interface, the ABB DSAO 120 seamlessly integrates with various industrial automation systems, enabling easy setup and configuration through standard protocols. This connectivity feature simplifies the integration process, enhancing system efficiency and reducing installation time.

    With a fast response time of less than 10 milliseconds, the module ensures immediate adjustments to control signals, leading to improved operational responsiveness. This quick reaction capability is particularly beneficial in applications where rapid feedback is essential for maintaining optimal performance.

    Backed by ABB’s commitment to quality and reliability, the DSAO 120 comes with comprehensive technical support and a warranty period, ensuring peace of mind for users. It is designed to meet the highest industry standards, making it a trusted choice for manufacturers seeking to enhance their automation capabilities with precision and dependability.
