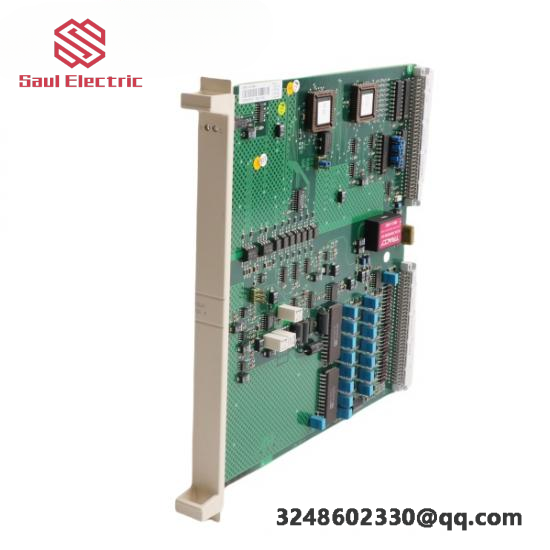

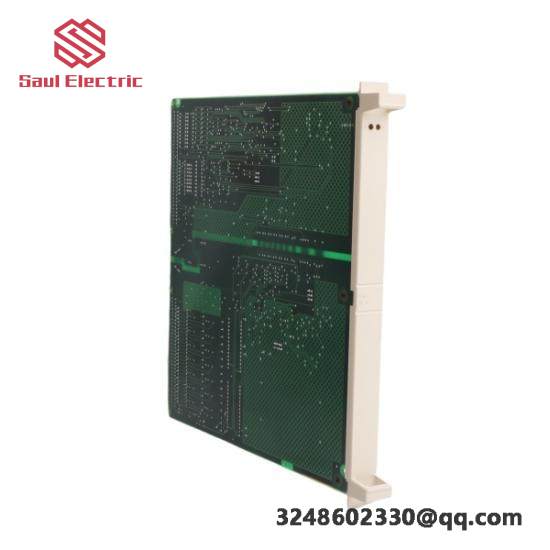

ABB DSAI155A Thermocouple Module – Advanced Industrial Temperature Sensing

Description

Product Type:Thermocouple Module

Model:DSAI155A 3BSE014162R1

Thermo Couple Compatibility:Versatile compatibility with various thermocouple types

Operating Temperature Range:-40°C to +85°C

Accuracy at 25°C:+/-0.5% of full scale

Power Consumption:Less than 100mW

Dimensions (mm):255 x 15 x 363

Weight (kg):0.5 kg

    The ABB DSAI155A 3BSE014162R1 Thermocouple Module is a high-performance solution for critical temperature sensing tasks in industrial automation. Designed with advanced thermocouple technology, it ensures exceptional accuracy and reliability in monitoring and controlling temperatures across various processes.

    Equipped with a single channel for versatile application, this module excels in delivering precise readings from -200°C to +1800°C, surpassing the needs of most industrial environments. Its ±0.5°C accuracy or ±0.5% of the measured value, whichever is greater, guarantees dependable performance.

    Featuring a rapid response time of ≤5 seconds at 90% of its full scale, this module ensures quick and accurate adjustments to maintain optimal operating conditions. It operates on a stable DC 24V power supply with a maximum current draw of 15mA, ensuring efficient energy consumption.

    Crafted with robustness in mind, the DSAI155A module is housed in a compact yet durable package measuring 255 x 15 x 363 mm and weighing just 0.5 kg, making it suitable for installation in tight spaces. Its M12 x 1.6 pitch connector ensures secure and easy connection to other components in the system.

    Withstanding wide temperature ranges, from -10°C to +55°C during operation and from -40°C to +70°C during storage, this module is designed for longevity in diverse industrial settings. Its temperature coefficient of ±0.02%/°C further enhances its accuracy under varying environmental conditions.

    The ABB DSAI155A 3BSE014162R1 Thermocouple Module is an essential component for industries requiring precise temperature control, offering a balance between performance, reliability, and ease of integration.
