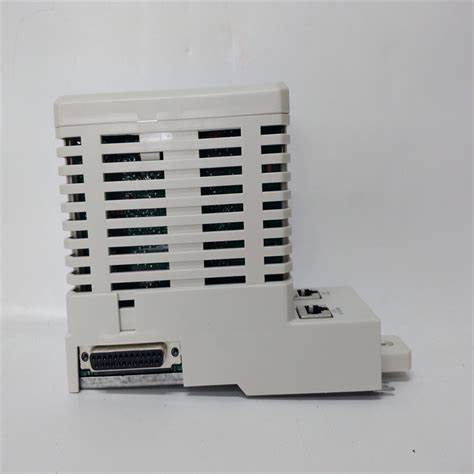

ABB CI867K01 3BSE043660R1 Modbus TCP Interface Module Controller

Description

ABB CI867K01 3BSE043660R1 is a Modbus TCP interface module controller designed specifically for the industrial automation field. It supports efficient data transmission and is suitable for various complex industrial control systems, providing stable and reliable communication solutions.

1、 Product Overview
Model and Number: CI867K01，3BSE043660R1
Brand: ABB
Type: Intelligent I/O module with communication function
Application field: Industrial automation, especially suitable for situations that require high performance, high reliability, and complex control.

2、 Core functions
communication interface
Protocol: Supports Modbus TCP protocol and provides services specified by functional codes.
Transmission speed: Dual channel design, Ch1 supports 100 Mbps full duplex, Ch2 supports 10 Mbps half duplex.
Connector: RJ-45 female head (8-pin), supports hot plugging.
Network configuration: It needs to be connected to the main network through an Ethernet switch.
Redundancy and reliability
Redundancy support: can be set to redundancy mode, supports hot plugging, and ensures high availability of the system.
Redundant channels: Each CI867 can connect up to 70 slave devices and 8 master devices (shared by Ch1 and Ch2).
Protection level: IP20， Compliant with EN 60529 and IEC 529 standards.
Electrical parameters
Input voltage range: 12-48 VDC
Output voltage: 5 VDC
Power consumption: Low power design, no external fan required.
Environmental adaptability
Operating temperature:- 20 ° C to+50 ° C
Storage temperature:- 40 ° C to+70 ° C
Environmental humidity: 5% to 95% relative humidity (no condensation).

3、 Technical features
High performance processor
Built in high-performance processor enhances data processing and communication capabilities, ensuring system response speed and stability.
intelligent control algorithm
Adopting advanced algorithms such as fuzzy logic and expert systems to enhance the system’s control level and fault diagnosis capability.
Self diagnosis and fault prediction
Utilizing artificial intelligence technology for self diagnosis and early fault prediction, optimizing process control, and reducing downtime.
Modular design
Supporting flexible configuration, different configuration options can be selected according to specific application requirements to meet diverse control needs.
