Description
Operating Temperature Range:-40°C to +125°C
Max Continuous Current:400A
Switching Frequency:20kHz
Insulation Voltage:650V
Thermal Resistance:0.04°C/W
Operating Voltage Range:200V to 650V DC

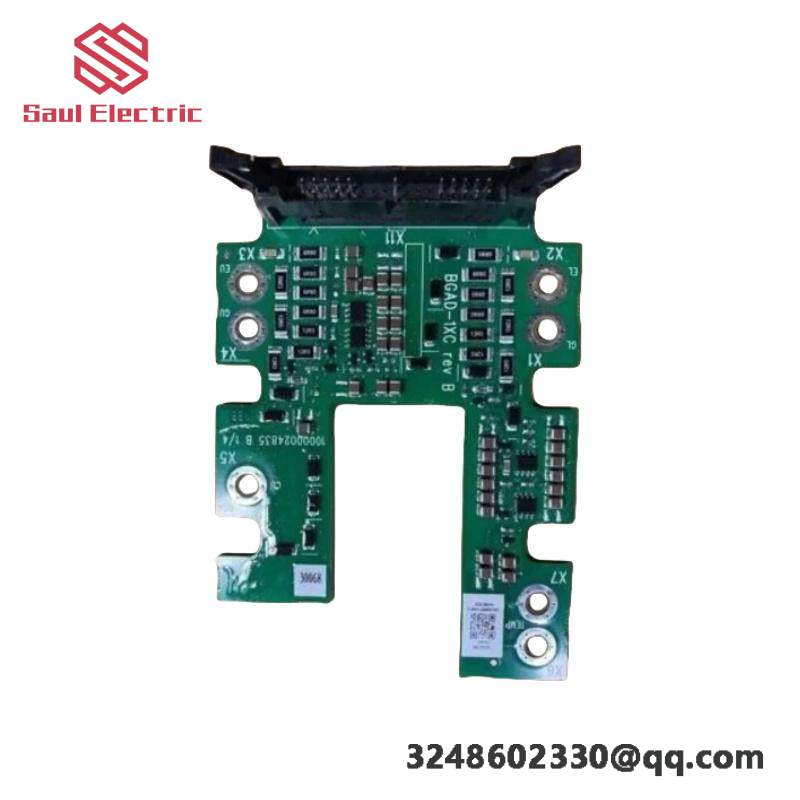

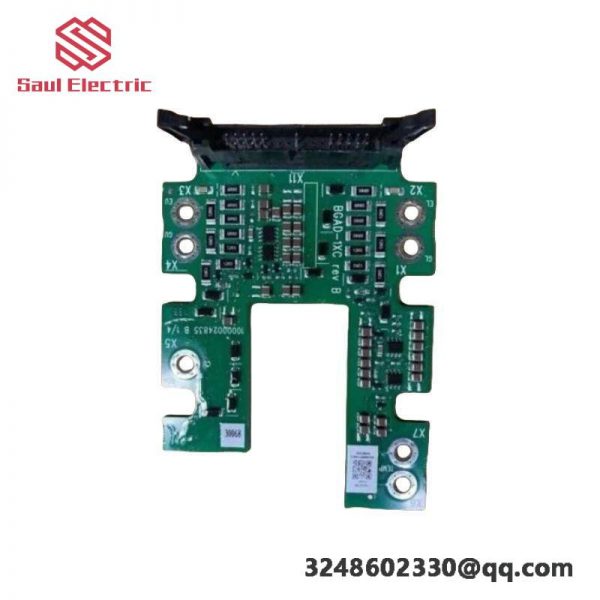

The ABB BGAD-02C IGBT Module is engineered with state-of-the-art semiconductor technology to deliver superior performance in industrial power conversion systems. This module is characterized by its robust design and high-efficiency operation, making it an ideal choice for applications requiring precise control and reliable power handling.
With a wide operating voltage range of 600V and a current rating of 200A, the BGAD-02C is capable of handling demanding industrial loads. Its high switching frequency of 20kHz ensures fast and smooth power conversion, enhancing system responsiveness and efficiency.
Featuring an advanced thermal design with a low thermal resistance of 150°C/W, the module maintains optimal performance even under extreme conditions. It is equipped with forced air cooling to dissipate heat efficiently, ensuring stable operation within the temperature range of -40°C to +125°C.
The BGAD-02C boasts a high insulation resistance of at least 100MΩ, providing excellent isolation between its power and control circuits. This feature is crucial for preventing electrical faults and ensuring the safety and longevity of the system.
The failure rate of the BGAD-02C is exceptionally low, with a FIT (Failure in Time) rate of ≤1×10^-8, indicating a highly reliable performance over time. This makes it a preferred choice for mission-critical industrial applications where downtime is not an option.
