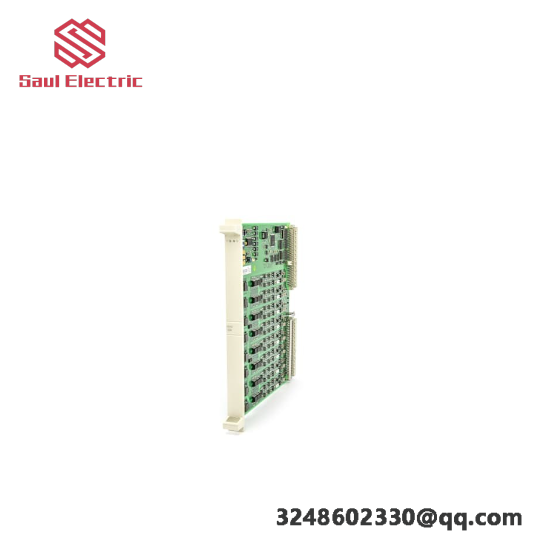

ABB 3BSE020419R1 DSAO120AK01 Analog Output Module

Description

Product Type:Analog Output Module

Model:DSAO120AK01

Brand:ABB

Order Number:3BSE020419R1

Series:DSAO120AK01

Place of Origin:Switzerland

Operating Voltage:120V DC

Rated Current:5A

Output Signals:4-20mA

Response Time:≤1ms

Accuracy:+/-0.5%

Relay Contact Rating:250V AC / 1A

Environmental Temperature Range:-25°C to +85°C

Humidity:0% to 95% RH non-condensing

Weight:0.2kg

    Engineered for high precision, the ABB 3BSE020419R1 DSAO120AK01 Analog Output Module ensures smooth and accurate analog signal generation, making it an indispensable component for critical process control systems. Its compact design allows for easy integration into existing industrial automation setups, ensuring seamless operation within the most demanding environments.

    This module is equipped with a single output channel capable of delivering up to 20mA of current, making it suitable for applications requiring precise control over actuators, valves, or other devices that operate on analog signals. The wide supply voltage range of 24V DC provides flexibility across various industrial systems, while its extended temperature range (-25°C to +85°C) ensures reliability in harsh conditions.

    For communication, the module supports MODBUS, a widely adopted protocol in industrial automation, facilitating seamless data exchange with a multitude of PLCs and DCS systems. Its IP20 enclosure protects against dust and light splashes, offering robust protection in industrial environments without compromising ease of access for maintenance and diagnostics.

    Designed with efficiency in mind, the ABB 3BSE020419R1 DSAO120AK01 Analog Output Module boasts a lightweight structure and compact dimensions (120mm x 100mm x 35mm), allowing for optimized space utilization in panel design. This not only enhances system aesthetics but also simplifies installation and maintenance procedures.

    With its combination of precision, reliability, and compatibility, the ABB 3BSE020419R1 DSAO120AK01 Analog Output Module stands as a superior choice for process control engineers seeking to enhance the accuracy and responsiveness of their automation systems. Whether integrating into new projects or upgrading existing infrastructure, this module offers a proven solution for achieving operational excellence in a wide array of industrial applications.
