Description
Operating Voltage:Up to 690VAC
Output Frequency:Up to 15kHz
Current Rating:150A
Cooling Method:Air Cooling
Input Power Factor:Greater than 0.95
Protection Class:IP20
Weight:Approximately 10kg
Dimensions (WxHxD):178mm x 132mm x 165mm
Environmental Temperature Range:-10°C to +50°C

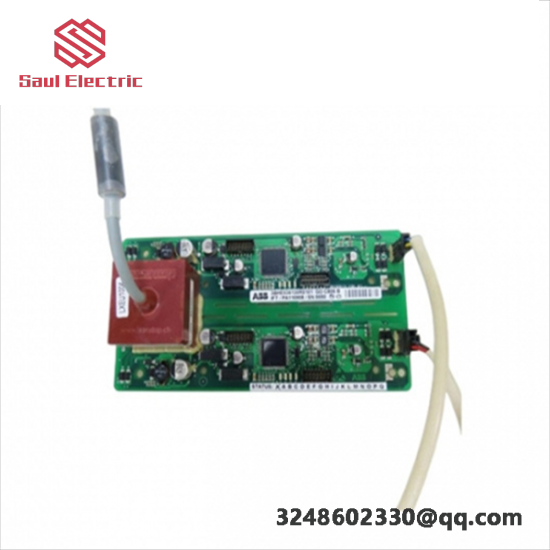

Engineered for reliability and efficiency, the ABB 3BHE036290R0001 GATE DRIVE UNIT offers unparalleled performance in industrial control systems. This state-of-the-art module is specifically designed to provide precise gate drive for a wide range of industrial applications, ensuring optimal operation and energy savings.
With a robust design that withstands harsh environmental conditions, this module can operate within a temperature range of -20°C to +60°C, making it suitable for various industrial settings. It is equipped with advanced insulation class B, which guarantees safety and reliability in power handling.
Featuring a high-frequency switching speed of up to 100kHz, this module ensures fast and accurate response times, enhancing the overall system performance and responsiveness. Its high peak output current capacity of up to 500A allows for efficient power delivery to control devices and motors, enabling smooth and precise control in demanding applications.
The ABB 3BHE036290R0001 GATE DRIVE UNIT is designed with user-friendliness in mind. It incorporates intuitive interface and diagnostic features, simplifying installation, maintenance, and troubleshooting processes. Comprehensive documentation and support are provided to ensure seamless integration and operation within existing systems.
Certified to meet international safety and quality standards, the ABB 3BHE036290R0001 GATE DRIVE UNIT is backed by ABB’s commitment to excellence. This ensures not only reliability and longevity but also compliance with industry regulations, providing peace of mind for users and stakeholders alike.
