Description
Operating Voltage:400 V
Frequency Range:50 Hz to 60 Hz
Current Capacity:Up to 200 A
Insulation Class:F-Class
Cooling Method:Natural Convection
Dimensions (WxHxD):178 x 120 x 118 mm
Weight:1.8 kg

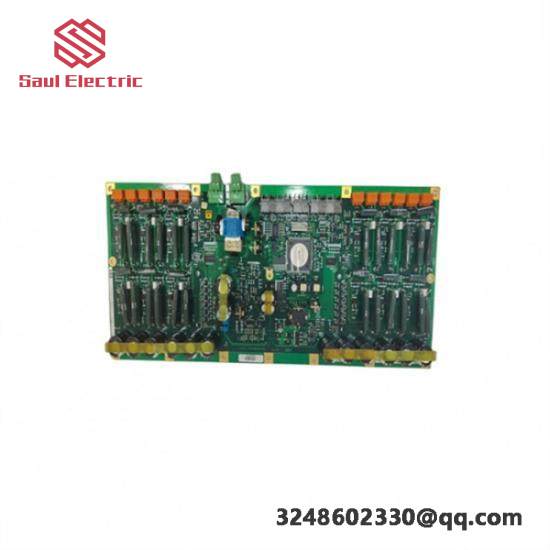

The ABB 3BHE027339R1002 IGBT gate drive board is engineered for high-performance applications requiring robust control over IGBT modules. It ensures smooth operation across a wide voltage range, providing stable current control and minimizing switching losses. With an operating temperature range from -40°C to +85°C, this board is designed for reliability in harsh industrial environments.
Featuring advanced signal processing capabilities, the board supports both digital and analog input signals, enabling versatile integration into various control systems. Its precision timing and synchronization functions optimize the performance of connected IGBTs, leading to enhanced system efficiency and reduced energy consumption.
Constructed with high-quality materials and advanced manufacturing techniques, the ABB 3BHE027339R1002 ensures long-term durability and minimal maintenance requirements. The board’s high insulation resistance further protects against electrical disturbances, ensuring reliable operation even under challenging conditions.
This IGBT gate drive board is fully compatible with ABB’s comprehensive line of industrial components and safety barriers, making it a seamless addition to existing systems. It supports easy installation and quick setup, reducing downtime and facilitating efficient maintenance processes.
With its MTBF exceeding 10^6 hours, the ABB 3BHE027339R1002 IGBT gate drive board offers unparalleled reliability and longevity. This makes it an ideal choice for critical applications where downtime cannot be tolerated. Backed by ABB’s global support network, users can expect comprehensive assistance throughout the product lifecycle.
