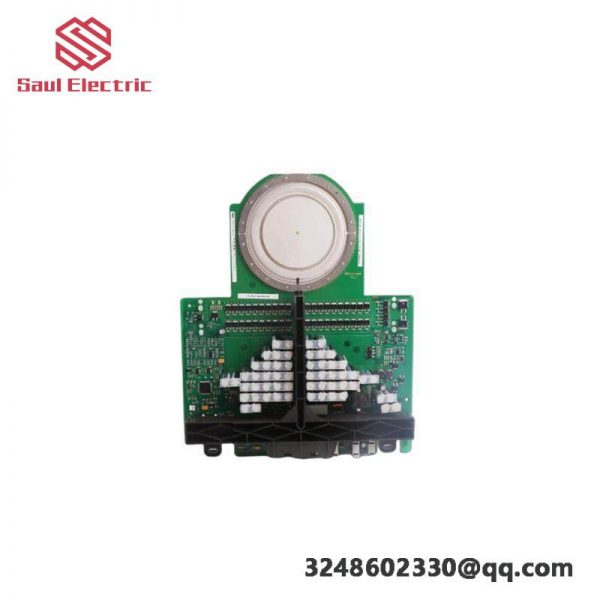

ABB 3BHB012961R0001 | 5SHX 2645L0002 IGCT MODULE

Description

Manufacturer:ABB

Model Number:3BHB012961R0001

Module Type:IGCT

Module Class:Power Conversion

Operating Temperature Range:-40°C to +100°C

Rated Current:2000A

Switching Frequency:10kHz

Insulation Class:Class H

Input Voltage:AC 690V

Output Voltage:DC 400V

Max Power Rating:800kW

Efficiency Rating:99%

Dimensions (WxHxD):100mm x 150mm x 250mm

Weight:20kg

    Engineered for unparalleled performance in power conversion tasks, the ABB 3BHB012961R0001 5SHX 2645L0002 IGCT MODULE is a cornerstone for advanced industrial applications. Its robust design and high-efficiency capabilities make it indispensable in environments requiring precise and continuous power management.

    Featuring an operating temperature range of -40°C to +100°C, this module ensures reliable operation under extreme conditions, making it suitable for a broad spectrum of industrial sectors including renewable energy, manufacturing, and heavy machinery.

    With a rated current of 2000A and a switching frequency of 10kHz, the module provides unmatched power conversion efficiency, enabling seamless integration into complex power electronics systems. Its high insulation class (Class H) guarantees exceptional thermal stability and longevity.

    Equipped with an AC input voltage of 690V and delivering a DC output voltage of 400V, the module is capable of handling high-power demands while maintaining optimal performance. Its max power rating of 800kW ensures it can support large-scale operations without compromise.

    Boasting an impressive efficiency rating of 99%, this module optimizes energy usage, reducing operational costs and environmental impact. The compact dimensions (100mm x 150mm x 250mm) and manageable weight (20kg) facilitate easy installation and maintenance, enhancing its practicality in various industrial setups.
