Description
Application Voltage:600V DC
Maximum Current:100A
Operating Frequency:Up to 10kHz
Input Power:30W
Cooling Method:Convection cooling
Environmental Temperature Range:-40°C to +85°C

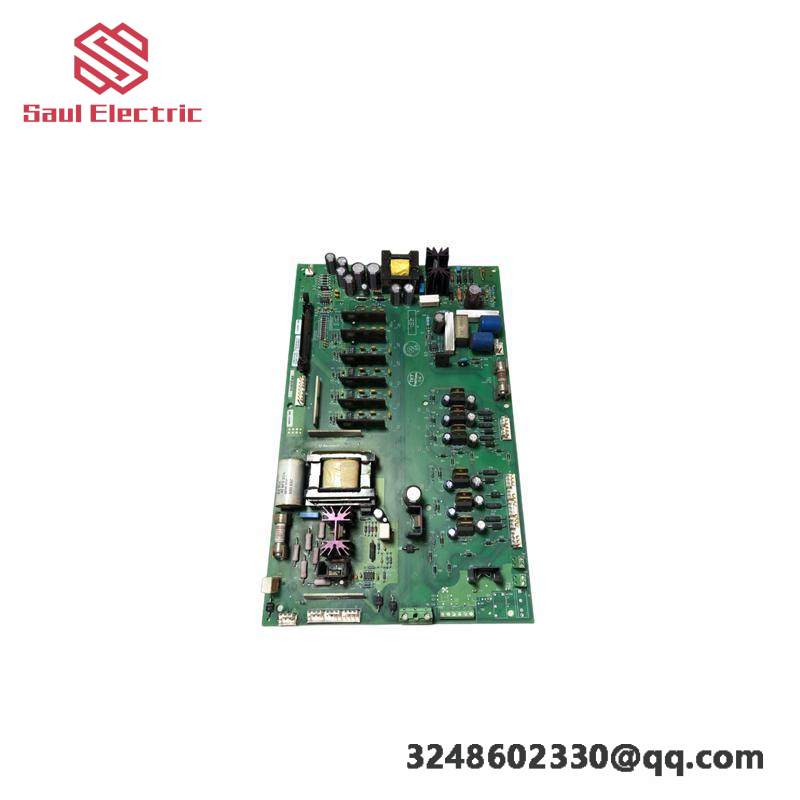

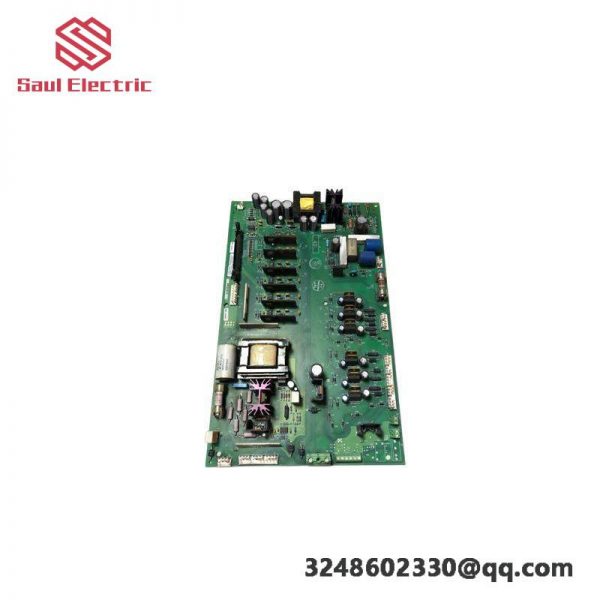

Integrating advanced circuit design, the Allen-Bradley 1336-BDB-SP30D PCB Gate Drive Board ensures reliable and stable gate drive for power semiconductors, enhancing system efficiency and reducing maintenance requirements.
With a compact size and robust construction, this PCB is ideal for space-constrained industrial environments, ensuring durability under harsh conditions.
Featuring a wide operating voltage range and current rating, it supports a broad spectrum of industrial applications, from low to high power needs.
Equipped with an RS-485 communication interface, the board facilitates seamless integration into existing control systems, enabling advanced diagnostics and remote monitoring capabilities.
Offering compatibility with load capacitances up to 100nF, it supports various semiconductor loads, making it versatile for different industrial control scenarios.
