Description
Power Supply Voltage:24V DC
Current Rating:250mA
Number of Outputs:16
Communication Interface:MODBUS
Operating Temperature Range:-40°C to +85°C
Enclosure Type:IP20
Mounting Style:Panel
Input Protection:Overvoltage protection

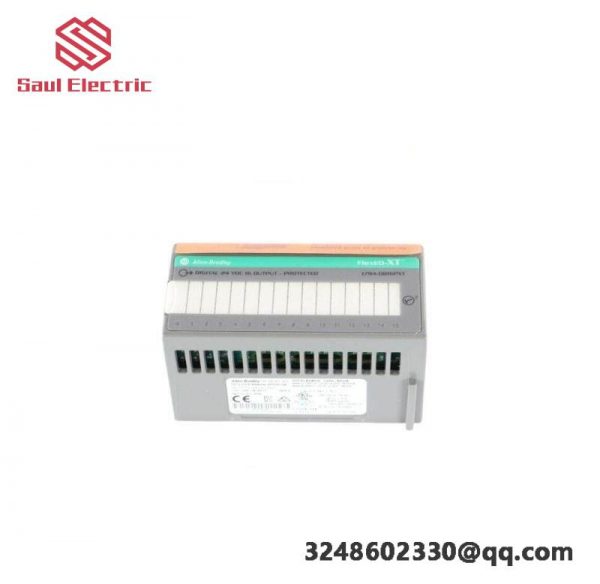

AB 1794-OB16PXT is meticulously engineered for seamless integration into diverse industrial automation systems, offering unparalleled reliability and efficiency. It supports up to 16 digital output channels, each capable of delivering 1.5A at 24V DC, ensuring robust control over actuators, motors, or any device requiring precise on/off commands.
Featuring a compact design with dimensions of 102mm x 86mm x 51mm and weighing approximately 250g, this module is lightweight yet durable, making it suitable for both stationary and mobile applications. Its temperature tolerance ranges from -10°C to +60°C, and it operates efficiently within humidity levels of 5% to 95% RH, ensuring consistent performance under varied environmental conditions.
With a switching speed of ≤1ms, the AB 1794-OB16PXT ensures minimal latency between signal generation and response, enabling faster and more responsive system operations. Its high switching life of ≥100,000 cycles guarantees long-term durability, reducing maintenance costs and downtime.
Each channel is equipped to handle capacitances up to 1μF, allowing for compatibility with a wide range of load types. The module is designed with safety in mind, incorporating protection mechanisms against overvoltage, overcurrent, and short circuits, safeguarding your system from potential damage.
For ease of integration, the AB 1794-OB16PXT comes with comprehensive documentation and support resources, including detailed installation guides, configuration manuals, and troubleshooting tips. It is compatible with major PLC platforms, making it a versatile addition to existing control systems.
