Description
Board Size:85mm x 65mm
Operating Voltage:12V to 40V DC
Maximum Current:500mA per channel
Input Signal:Logic-level (TTL/CMOS)
Output Configuration:Push-Pull
Package Type:Surface Mount Technology (SMT)
Operating Temperature Range:-40°C to +85°C
Power Consumption:1W
This AB Gate Driver Board Kit is engineered for exceptional reliability and efficiency in heavy-duty industrial control applications. It supports a wide range of operating currents and offers high switching frequencies, ensuring precise control over your system’s performance.
Featuring a compact yet robust design, the board measures 75mm x 75mm, making it easy to integrate into various industrial setups. Its temperature range of -40°C to +125°C guarantees stable operation in extreme environments, ensuring continuous functionality regardless of ambient conditions.
With an input voltage range from 5V to 36V, this kit is versatile enough to work with a variety of power sources, providing flexibility in system design. The compatibility with AB 1336, AB 1337, and AB 1338 modules ensures seamless integration into existing AB systems, streamlining your setup process.

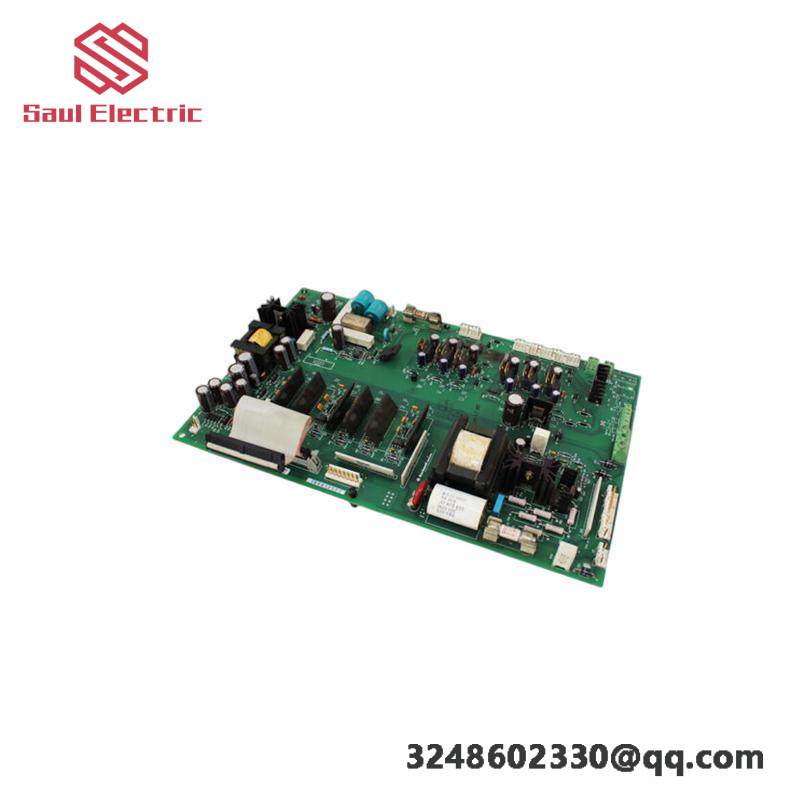

The AB 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit is not just about performance—it’s about durability. Constructed with high-quality materials, it withstands the rigors of industrial use, reducing maintenance costs and downtime.
Installation and setup are straightforward thanks to detailed instructions and compatibility with standard industrial interfaces. Whether you’re upgrading an existing system or building a new one, this gate driver board kit is your reliable partner for achieving optimal control and efficiency in your industrial operations.
