Description
Operating Voltage:5000V
Current Rating:Fast DC output
Switching Speed:Microseconds
Load Capacitance:Up to 100nF
Operating Temperature:-40°C to +85°C
Isolation Voltage:2000Vrms
Dimensions:70mm x 45mm x 25mm
Weight:150g
Connection Type:Terminal Block
Mounting Style:Panel Mount
Communication Protocol:Modbus TCP/IP
Input Resistance:1kΩ
Response Time:Less than 5ms

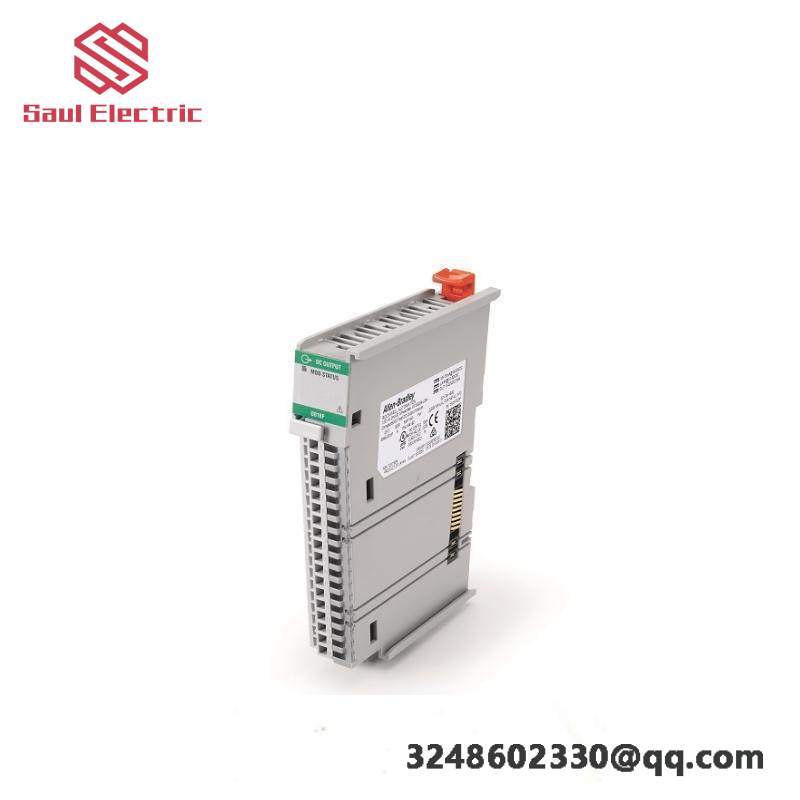

The AB 5069-OB16F module is designed with an advanced microcontroller for seamless integration into industrial control systems. Its compact size (70mm x 45mm x 25mm) makes it suitable for space-constrained applications without compromising performance.
Featuring a high isolation voltage of 2000Vrms, the module ensures reliable operation even in environments with high electromagnetic interference. The exceptional switching speed, below microseconds, guarantees swift responses to control signals.
With a current rating optimized for fast DC output, the module efficiently handles power delivery, minimizing energy loss and maximizing system efficiency. It supports up to 100nF load capacitance, making it versatile for various circuit requirements.
Operable within a wide temperature range (-40°C to +85°C), the module ensures stable performance across different environmental conditions. The inclusion of a terminal block connection facilitates easy wiring and setup.
Equipped with Modbus TCP/IP communication protocol, the AB 5069-OB16F module seamlessly communicates with other industrial devices, enabling efficient data exchange and control over networks. This feature enhances system scalability and interoperability.
