Description
Product Type:Analog Current Output Module
Model Number:1746SC-NO8I
Manufacturer:Allen Bradley
Number of Channels:8
Output Range:0 – 21.5 MA
Operating Voltage:24 VDC ± 10%
Minimum Output Current:300 MA
Current Output Ranges:4 – 20 MA, 0 – 20 MA, 0 – 21 MA, 0 – 21.5 MA
Current Rating:Backplane: 120 MA at 5 VDC, 250 MA at 24 VDC (J4 Jumper Set To Rack), 0 MA at 24 VDC (J4 Jumper Set To EXT)
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis

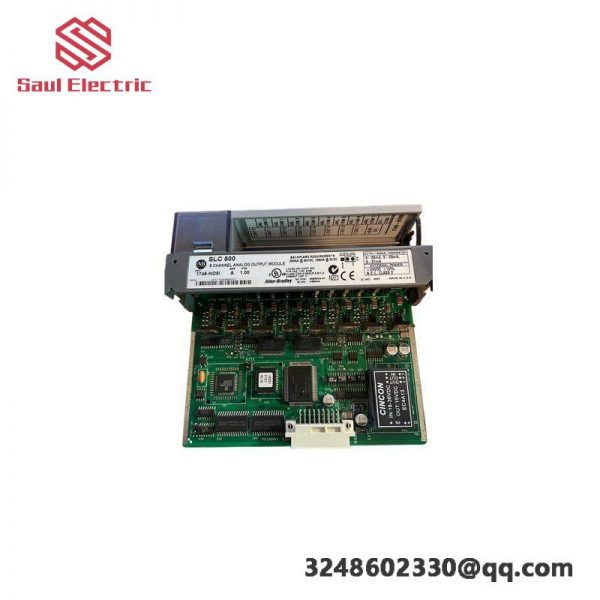

The AB 1746SC-NO8I Output Module is engineered to deliver exceptional reliability and precision in industrial automation environments. Its robust design ensures seamless integration into Allen Bradley’s renowned SLC500 series, offering unparalleled performance and ease of use.
Each channel provides a versatile range of current output options, enabling compatibility with a wide array of industrial sensors and actuators. The module’s advanced isolation features ensure electromagnetic interference (EMI) suppression, enhancing system stability and accuracy.
With support for various communication protocols including EtherNet/IP, DH+, DH-485, and RS-232, this output module facilitates seamless connectivity within complex industrial networks. It supports remote monitoring and control capabilities, enhancing operational efficiency and reducing downtime.
Featuring a compact size and robust construction, the AB 1746SC-NO8I is designed for durability and longevity, ensuring minimal maintenance requirements and maximizing operational uptime. The inclusion of status LEDs allows for quick identification of operational status, simplifying troubleshooting and maintenance procedures.
Ideal for applications ranging from manufacturing lines to process control systems, this output module leverages Allen Bradley’s commitment to innovation and quality, delivering a cost-effective solution for enhancing productivity and efficiency in industrial settings.
