Description

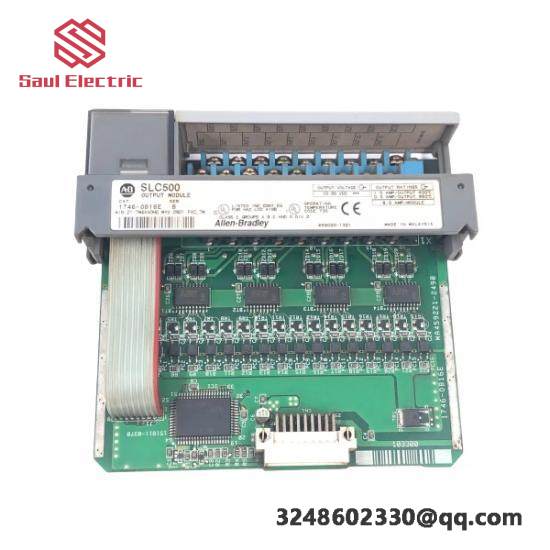

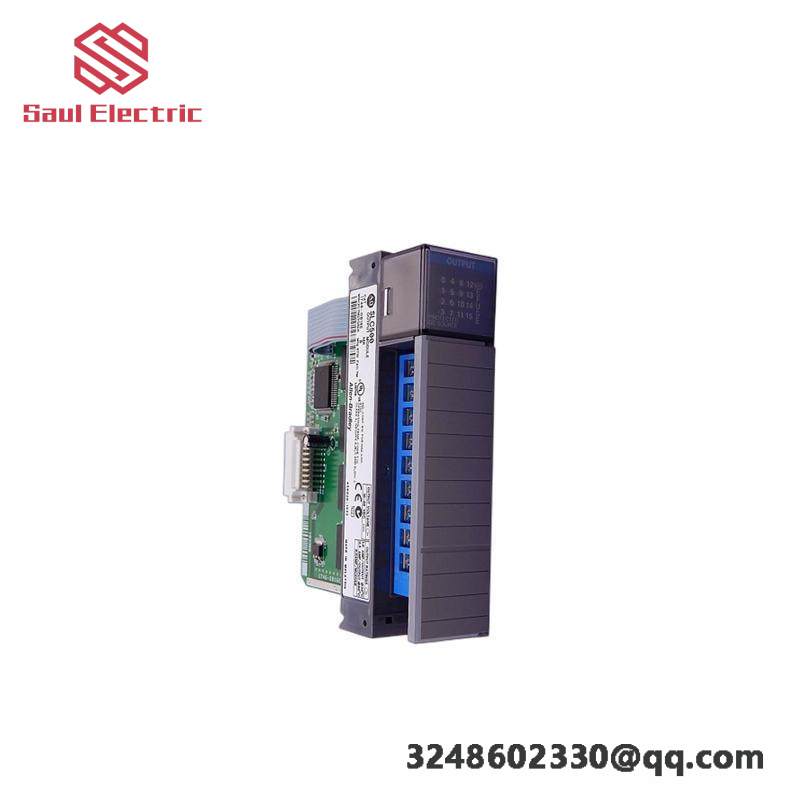

Model Number:1746-OB16E
Manufacturer:Allen-Bradley
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Processor Compatibility:SLC 500
Environmental Conditions:5 – 95% relative humidity, operating temperature range: 0 – 60°C
The Allen-Bradley 1746-OB16E Digital DC Output Module is a high-performance solution designed for industrial automation and control systems. Its 16-channel configuration ensures efficient operation in a wide range of applications. With an input voltage of 24 VDC and a versatile output voltage range of 10 – 50 VDC, this module provides reliable and consistent performance. The on-state voltage drop of 1.2 V and off-state output leakage of 1 MA ensure minimal power loss and high accuracy. Each channel supports a continuous current of 0.25 A at 60°C, making it suitable for demanding industrial environments. The module is compatible with the SLC 500 processor and features robust isolation capabilities, including 500 VDC communication circuits and 1500 VAC backplane isolation, ensuring safe and reliable operation. Designed with an open-type enclosure and chassis mounting, this module offers easy installation and maintenance. Operating within a temperature range of 0 – 60°C and environmental conditions of 5 – 95%, the 1746-OB16E is built to withstand harsh industrial settings. This digital DC output module is an excellent choice for engineers and technicians looking for dependable and efficient control solutions.
