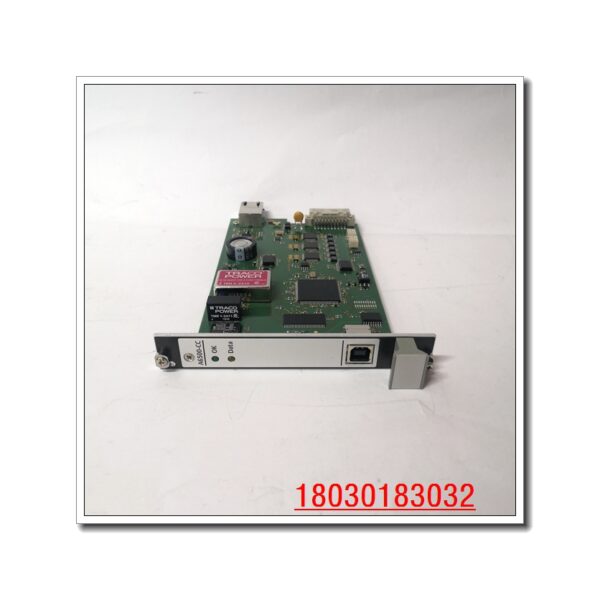

A6500-CC Emerson communication card

Description

The A6500-CC EMERSON Communication Card is a system communication card produced by Emerson in the United States, whose details are as follows:

Product overview
Model: A6500-CC
Manufacturer: EMERSON (USA)
Design objective: To ensure the high reliability of the plant’s most critical rotating machinery.
Functional characteristics
Parameter reading: The parameters of all AMS 6500 ATG modules can be read.
Parameter output: Parameters read via ModBus TCP/IP and/or ModBus RTU (serial) output.
Data transmission: OPC UA can be used for data transmission to third-party systems.
Protection system: Integrated API 670 standard TSI protection system, including PeakVue technology and bandpass filters.
Technical specification
Data output: RS 485 supports up to 6 buses, and the data rate meets the EIA485 standard, up to 512 kbit.
Ethernet connector: RJ45, data rate 10/100 Mbit.
Cable length: Maximum 100m.
Voltage: 2V peak-to-peak value.
Rated current: 100 mA.
Rated power: 200 mW.
USB connection: USB Type B, data rate 12 Mbit/s.
Application field
The A6500-CC system communication card is used in steam, gas, compressor and hydraulic turbomachinery.
Additional information
Founded in 1890 as a manufacturer of motors and fans, Emerson Electric has grown into a global technology solutions powerhouse.
Emerson combines technology and engineering to provide customers with innovative solutions in the fields of process management, industrial automation, network energy, environmental optimization technology and commercial and residential solutions.
Matters needing attention
When using the A6500-CC communication card, ensure that it is properly configured and installed to take full advantage of its functions and features.
Based on actual application scenarios, you may need to work with other devices or systems. Therefore, ensure compatibility with other devices and systems.
