Description
About the 5069-L380ERM AB servo controller, the following is the detailed information:
1. Basic information

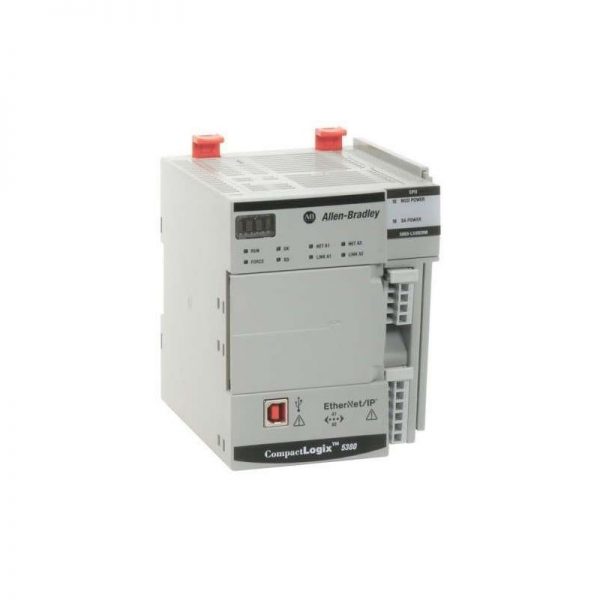

Model: 5069-L380ERM
Brand: AB (Allen-Bradley), part of Rockwell Automation
Type: CompactLogix 5380 Controller
Second, functional characteristics
Motion control:
The configuration supports up to 256 motion shafts and 24 CIP drive shafts for flexible response to a variety of complex motion control needs.
The motion shaft can be composed of CIP drive shaft, virtual shaft, consumption shaft, and regenerative AC /DC converter and non-regenerative AC /DC converter shaft types to meet different application scenarios.
Electrical isolation:
Provides 300V (continuous) voltage isolation between MOD power supply and backplane, Ethernet and backplane, and USB and backplane using basic insulation types.
Use dual insulation types to provide 300V (continuous) isolation voltage between USB and SA power supplies, Ethernet and SA power supplies, and Ethernet and MOD power supplies to ensure stable system operation.
Processor power:
The controller is equipped with a powerful processor, with about 1000 programs/tasks, capable of handling unlimited task events, using all event triggering mechanisms to improve system response speed.
Network communication:
It has 2 ports based on Ethernet /IP configurations, supports DLR, star and linear topologies, and uses full-duplex transmission protocols for data transfer rates up to 10 Mbps, 100 Mbps and 1 Gbps.
Provides approximately 70 Ethernet /IP node addresses, up to 32 socket interfaces, and supports up to 28 axis integrated motion to meet high-speed, high-bandwidth communication needs.
Memory and expansion:
With 10MB of user memory and support for external memory card slots for memory expansion, the system has sufficient storage space.
3. Physical characteristics
Size and weight:
It measures 143.97 mm x 98.10 mm x 136.81 mm (5.67 in x 3.86 in x 5.39 in) and weighs approximately 0.768 kg (1.693 lb).
Installation and wiring:
Installed using DIN rail and removable patch board (RTB), terminal screw torque is 0.4 Nm (3.5 lbs-in).
Environmental adaptability:
The operating temperature range is between 0°C and 60°C, and the humidity range is about 5%-95% (non-condensing), in accordance with T4 ATEX, North American and IEC temperature standards.
Note: Because there are many products in our company, the pictures cannot correspond one by one. Please contact me for confirmation
