Description
The detailed introduction of the 3500/33 SIL2 01-00 Bently power module, frame interface module, and relay module is as follows:
1、 Product Overview
This series of modules is designed specifically for industrial automation and control systems, with high performance, reliability, and flexibility. They are typically used to monitor and protect critical equipment, ensuring its stable operation under various working conditions.
2、 Power module
Function: Provide stable and reliable power supply for the entire system.
Features: It has overvoltage and undervoltage protection functions to ensure the safe operation of the system under abnormal voltage conditions. At the same time, the power module also has hot swappable function, which facilitates maintenance and replacement without shutting down the machine.
3、 Framework interface module
Function: As the core component of the system, responsible for connecting various functional modules and achieving data transmission and exchange.
characteristic:
Adopting advanced interface technology to ensure seamless integration and interoperability between various functional modules.
Supports multiple communication protocols and data formats, facilitating data transmission and exchange with different systems.
Compact design, sturdy structure, suitable for various harsh industrial environments.

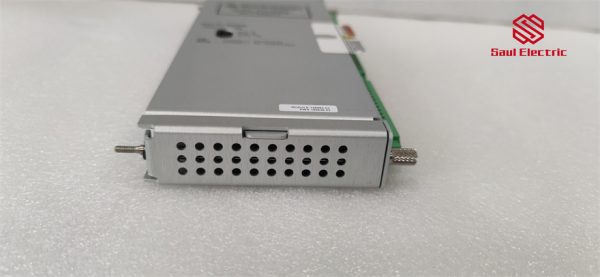

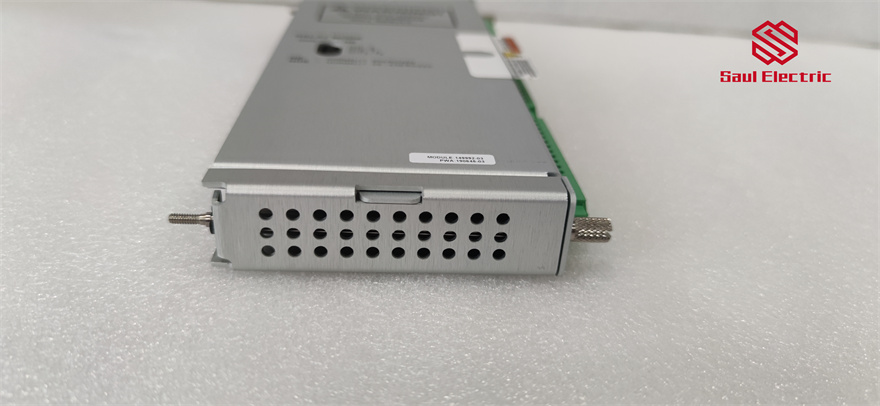

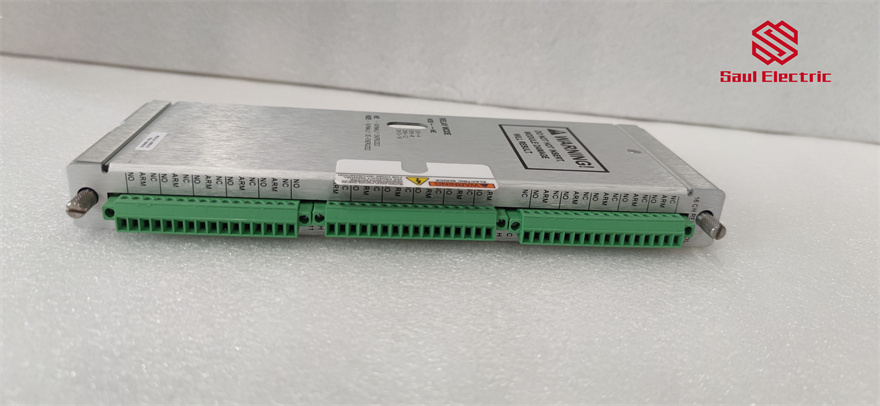

4、 Relay module (3500/33-01-00)
Function: Implement signal conversion and control, convert input signals into relay outputs for controlling external devices.
characteristic:
Provide 16 relay output channels, each of which can be independently programmed and controlled.
It has alarm driven logic function and can be implemented through “AND gate” and “OR gate” logic programming. When an abnormal situation is detected, an alarm can be triggered and corresponding control measures can be taken.
Relay modules also have the characteristics of high precision, high stability, and long lifespan, making them suitable for various complex industrial applications.
The front panel is equipped with LED alarm indicator lights, which facilitate users to understand the working status of the module in real time.
5、 Application scenarios
This series of modules is widely used in various industrial fields, such as energy, oil and gas, chemical, manufacturing, etc. Specific application scenarios include:
Energy industry: used for monitoring and protecting key equipment such as generators and transformers.
Oil and gas industry: used to monitor the status of pipelines, valves, and other equipment, promptly identify and address potential safety hazards.
Chemical industry: used to control temperature, pressure and other parameters in chemical reaction processes to ensure product quality and production safety.
Manufacturing: Used for equipment control and monitoring on automated production lines to improve production efficiency and product quality.
