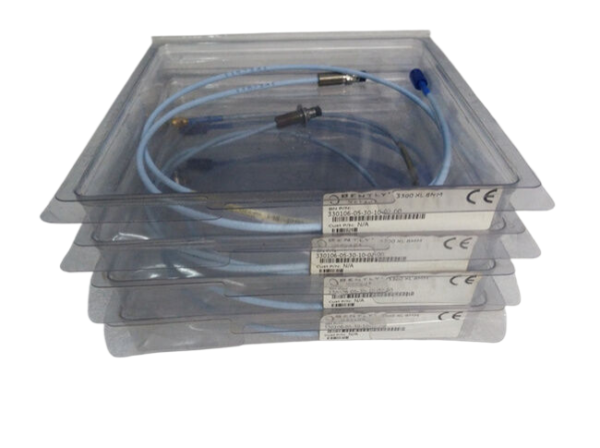

330106-05-30-05-02-05 Vibration Sensor Probe

Description

The 330106-05-30-05-02-05 vibration sensor probe is a high-quality vibration sensor probe produced by Bently Nevada, widely used in vibration monitoring of various rotating machinery. The following is a detailed analysis of the vibration sensor probe:
1、 Product Overview
Manufacturer: Bently Nevada
Product Code: 330106-05-30-05-02-05
Product type: 3300 XL 8mm reverse installation probe
Main purpose: Used to measure the vibration of rotating machinery, such as steam turbines, water turbines, fans, compressors, etc
2、 Technical specifications
Probe type: eddy current sensor
Total length: 0.5 meters (1.6 feet), indicated by the “05” in the number
Connector type: Miniature ClickLocTM coaxial connector, indicated by the “02” in the number
Probe tip material: Polyphenylene sulfide (PPS)
Probe housing material: AISI 303 or 304 stainless steel (SST)
3、 System composition
The Bently Nevada 3300 XL 8mm proximity sensor system typically includes the following parts:
3300 XL 8mm probe: This product is used to directly measure the vibration of rotating machinery
Extension cable: a cable connecting the probe and preamplifier
Pre processor: converts the electrical signal of the probe into a processable vibration signal
4、 Performance characteristics
Wide measurement range: capable of accurately measuring parameters such as shaft vibration, shaft displacement, key phase, and rotational speed of rotating machinery
High precision: meets strict measurement requirements to ensure data accuracy
Good temperature stability: able to maintain stable performance under various temperature conditions
Strong interchangeability: The probe, extension cord, and preamplifier can be fully interchangeable without matching or benchmark calibration
5、 Application Fields
This vibration sensor probe is widely used in the vibration monitoring of large and medium-sized rotating machinery in industrial fields such as power plants, chemical plants, refineries, and steel plants. By monitoring the vibration situation in real-time, mechanical failures can be detected in a timely manner, preventing the occurrence of major accidents.
